STYLE BT 600 CNC milling machine

The STYLE BT series consists of six models of milling machines, with a number of models available for a fully enclosed machine. The BT 600 is the smallest milling machine in the range. These milling machines are designed and developed especially for the production of custom work and small series.

Find out if our machines can machine your products

Any questions or would you like more information about this CNC milling machines?

We are happy to support you!

Erwin Koelewijn

Sales North and East Netherlands

Michel Haaima

Sales Central and West Netherlands

Jeroen ter Haar

Sales South Netherlands

Geert de Langhe

Sales Belgium

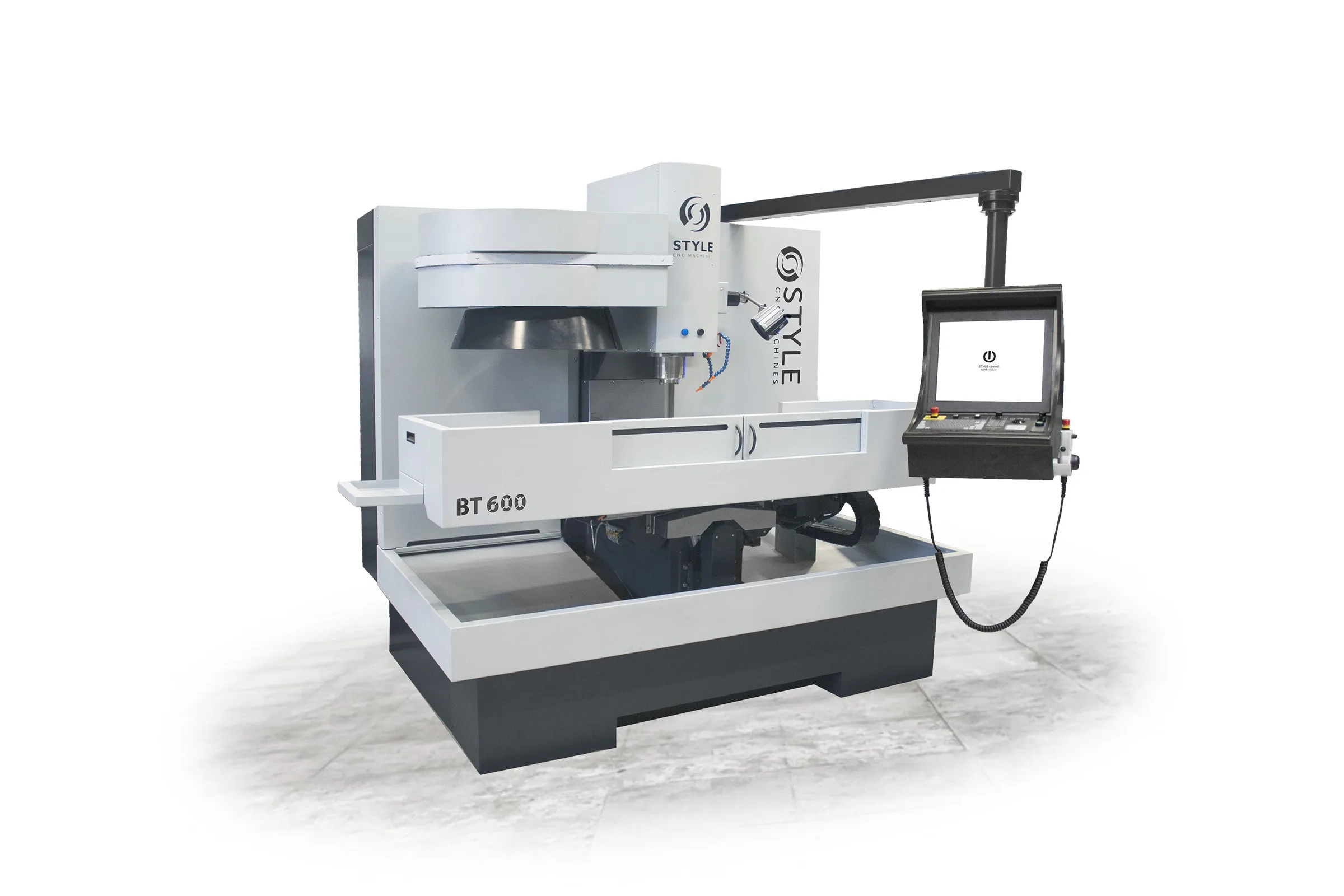

STYLE BT 600 CNC milling machine, the smallest milling machine with the most possibilities

STYLE BT 600 milling machine in brief:

  • Cast iron frame cast in one piece for high loads
  • Accessible controls
  • Stroke X / Y 600 x 450 mm
  • Maximum speed 12000 rpm
  • Fully Dutch development and production
  • Easy milling with STYLE control on a BT milling machine

Easy milling with STYLE control on a BT milling machine

The simple control allows operations such as planning and drilling in a few clicks. Complex operations such as dimensional milling, working with a 4th A-axis and programming with G codes are also extremely simple. Each CNC milling machine in our range has been developed with the highest possible precision, guaranteed reliability, Dutch design and an innovative, intuitive control.

Programming from the office
You can place all your programs that you want to mill on a USB stick, but it is also possible to place the computer of the milling machine in your network. This allows you to program your programs outside the machine.

BT Machine
Machine BT 600
X-axis movement mm 600
Y-axis movement mm 450
Z-axis movement mm 550
Bed width mm 370
Dimensions work table mm 700 x 450
Maximum table load kg 300
Height work table mm 800
Distance spindle nose to table mm 110 – 660
Distance spindle nose to column mm 545
BT Main spindle
Main spindle BT 600
Main motor power (S6) kW 5.5 / 7.5 / 11
Maximum spindle speed rpm 8000 – 12000
Spindle taper BT – SK/DIN698713 40

3 Choose for a BT or SK/DIN69871 spindle taper

BT Main spindle
BT X- Y- Z- Axis
X-, Y- and Z- axis BT 600
Rapid movement m/min 16
Feed rate m/min 4
BT Tool changer
Tool changer BT 600
Automatic tool changer # 124 / 165

4 Horizontal, 5 Vertical

BT Tool changer
BT General
General BT 600
Weight kg 3000
Machine dimensions (l/w/h) m 2.5 x 1.9 x 2.4
BT Options
Options BT 600
Sheet metal open / semi
Integrated 4th axis option
Coolant through the spindle MC 750
BT Options
