The best CNC control for single pieces and small series
Simple operation, maximum precision
Thanks to our proprietary STYLE control system, you can produce quickly, accurately and with confidence. No complex programming codes required.

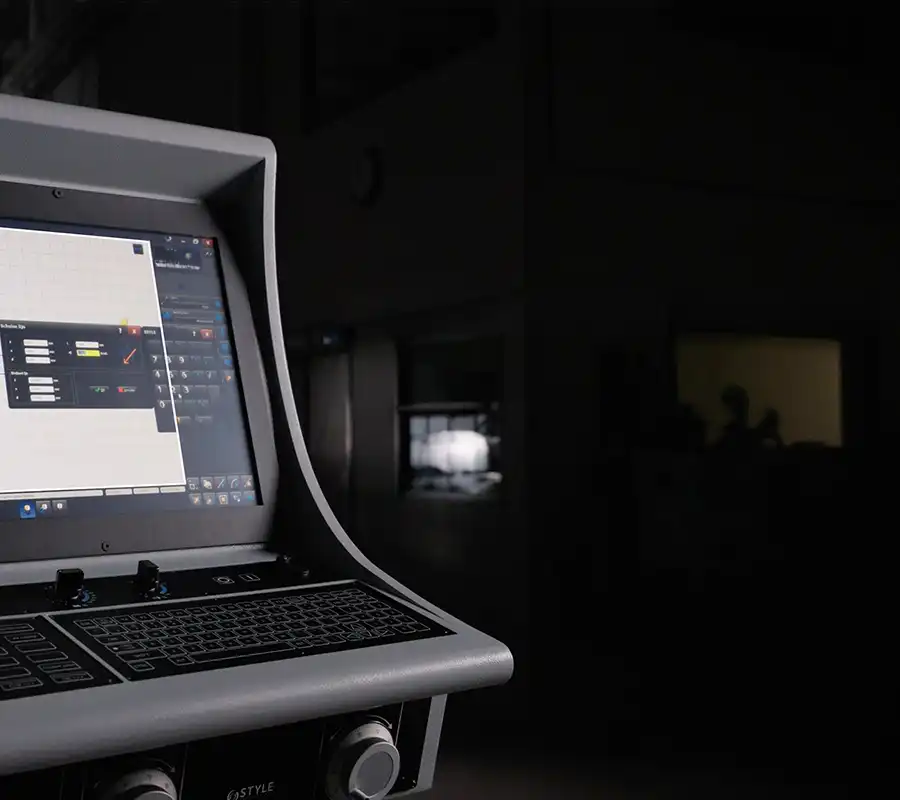

STYLE CNC Control: Realise excellence, experience simplicity
Designed and manufactured in the Netherlands, the STYLE CNC control system is the beating heart of our machines and has inspired us to keep innovating every day for more than 30 years. The control system supports both turning and milling and is ideally suited for single pieces and small series production. It is designed for both novice and experienced CNC operators. Our goal is to help customers achieve excellence while experiencing simplicity.
Customer-Specific Products
With the STYLE control system, you can easily create unique, fully customer-specific parts. No complex procedures or external programmers are required – simply program and produce parts directly at the machine.
Full Control Over the Final Result

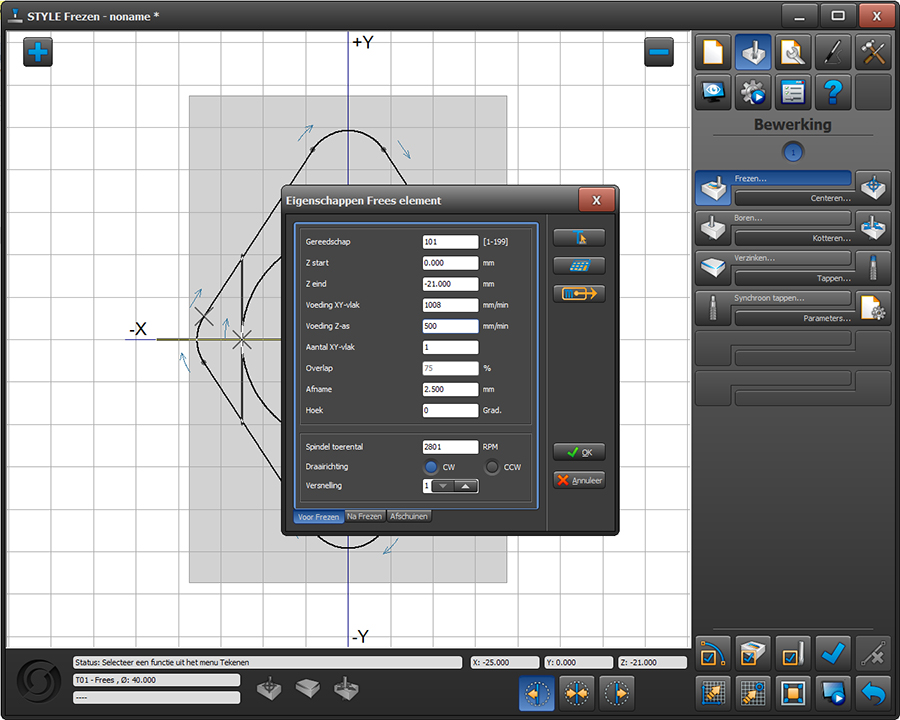

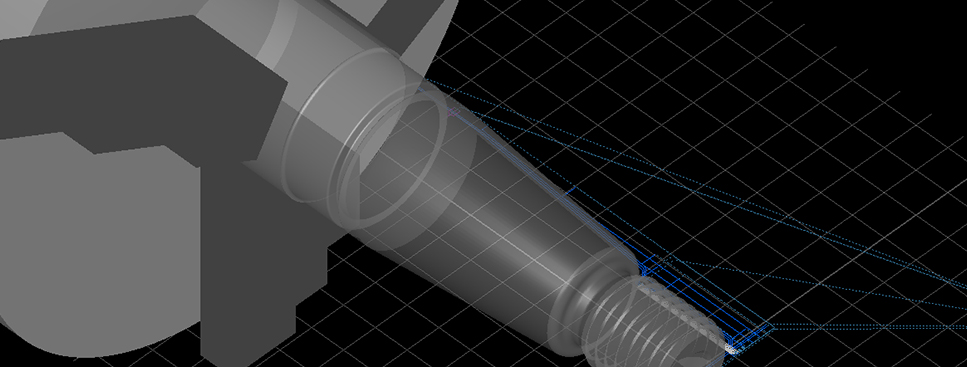

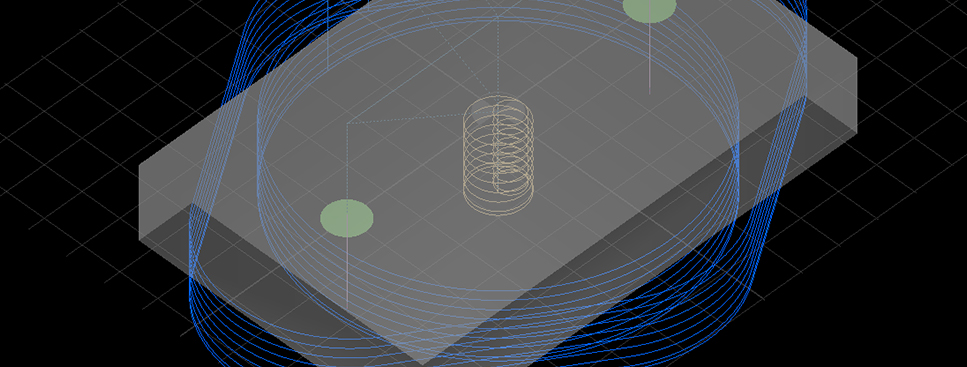

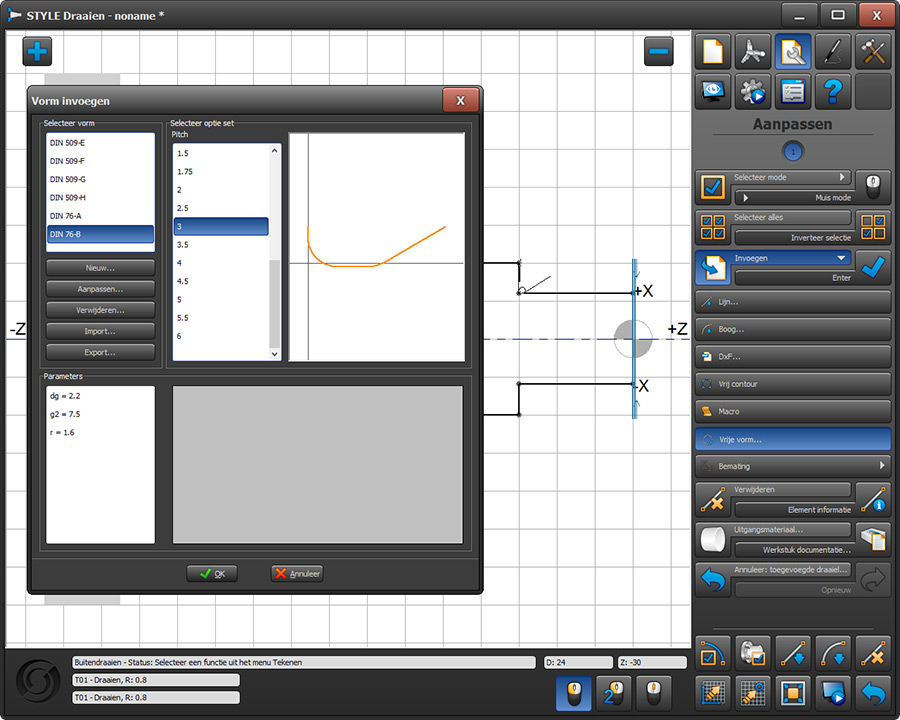

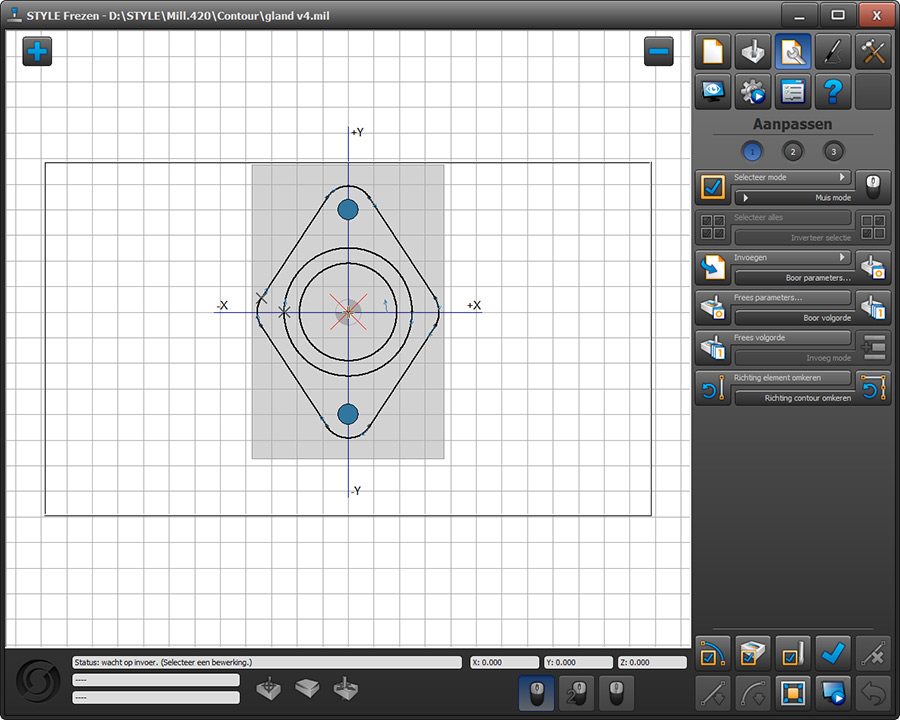

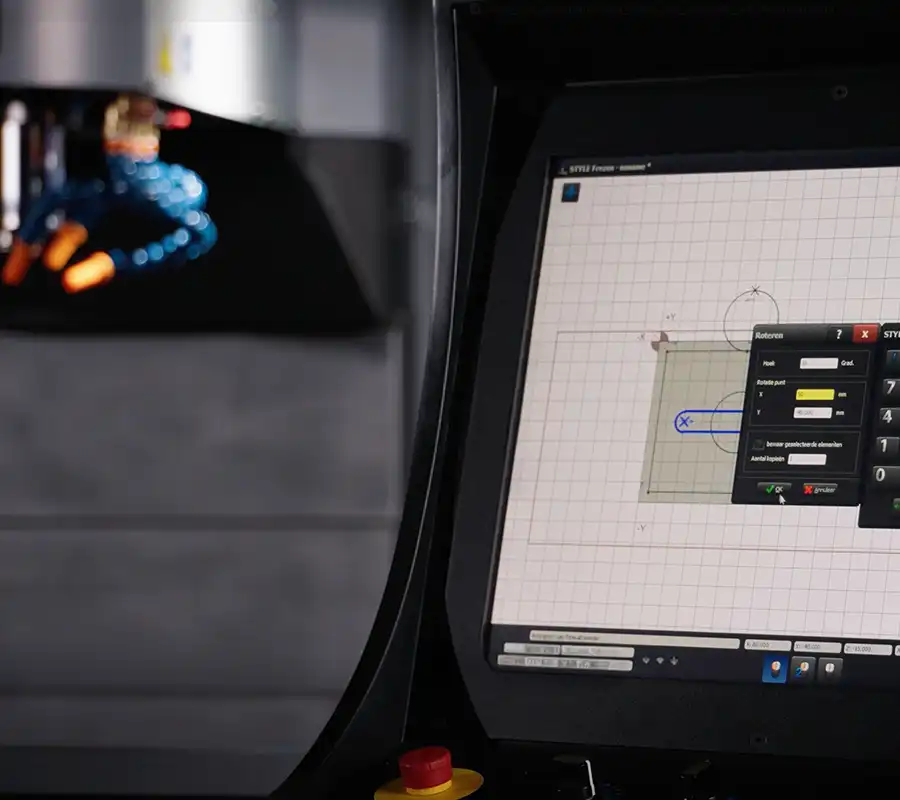

Thanks to intuitive simulation and visual programming, you can see exactly what the machine will produce before machining begins. This gives you complete control over both the production process and the final product.
No More Complex CNC Codes
Programming with complicated G-codes is a thing of the past. Simply enter the required values and the machine takes care of the rest – quickly, accurately, and error-free.
Increase Your Production Speed
Thanks to its user-friendly operation and short learning curve, any operator can become productive in a short time. This saves time, increases output, and helps maximize your production capacity.
Frequently Asked Questions About the STYLE Control System
Do you have a question about our CNC control system? Here you will find the most frequently asked questions along with their answers.
How many tools can be stored in the tool library?
Up to 5,000 tools can be programmed.
How many programs can be stored?
Because we use a Windows-based control system, virtually an unlimited number of programs can be stored.
Can STEP files be imported?
No, but DXF files can be imported.
Can the machine be connected to a network?
Yes, a network connection can be established with the company network.
Can I prepare programs offline?
Yes, the STYLE software can be installed on any Windows computer.
Can I repair threads?
Yes, the machine comes standard with a thread repair cycle.
Can I still perform manual turning operations?
Yes, in the manual operation dialog you can load the settings of a cutting tool and set a specific spindle speed and feed rate.
Can I perform 3D movements?
Yes, using G-code and STYLE CNC-Edit, simultaneous movements in three axes can be programmed and executed.
Can a 4th axis be added?
Yes. In cycle programming software, the 4th axis can only be programmed as an indexed axis. In G-code, it can also be programmed simultaneously with two other axes.
Can I save workpiece zero points?
Yes, up to 99 zero points can be stored in the zero point management system.
Can I clamp a tap in a collet?
Yes, the machine comes standard with a synchronized tapping cycle.
