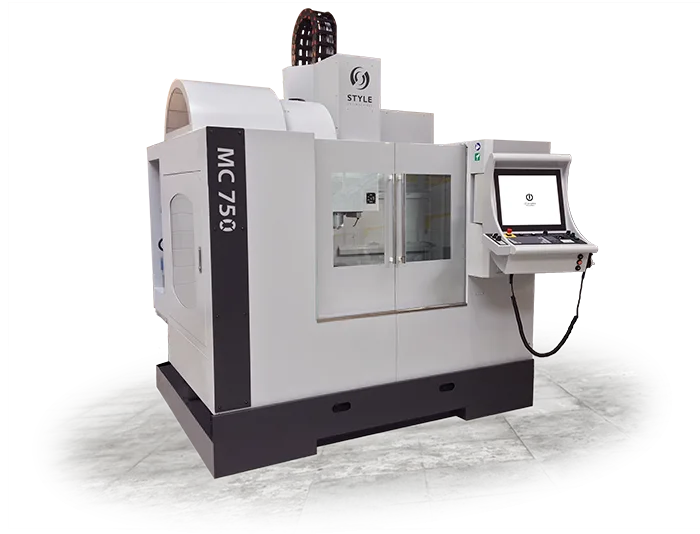

STYLE MC 750 CNC milling machine

The STYLE MC series are the right machining centers for the demanding machine operators. Machining centers are known for their wide working range and versatility when it comes to machining parts. These machining centers are suitable for single pieces and small series. The STYLE MC 750 is a CNC controlled machine with a very accessible operation and always a good view of the drawing and product.

Any questions or would you like more information about this milling machine?

We are happy to support you!

STYLE MC 750 CNC milling machine, the machining center for the demanding machine operator

STYLE MC 750 machining center at a glance:

  • Class C3 prestressed ball screws prevent thermal expansion for high milling accuracy
  • The X / Y / Z axis is driven directly by the axis motors, which ensures high positioning
  • Stroke X-axis: 760 mm, Stroke Y-axis: 440 mm, Stroke Z-axis: 460 mm
  • Table size 900 x 410 mm 12000 rpm at 7.5 kW

The machining center with very accessible controls

The MC 750 is equipped with a very stable cast iron frame with linear guides. The machine was built and designed by real Dutch machine builders. The machining center MC series is a line of closed, compact milling machines with an X stroke of 750 mm respectively, a modern CNC machine for the production and flexible machining of parts. The control system offers novice machineries the accessibility to get started with just a few hours of training and the experienced operator the tools to make high-quality complex products.

Programming from the office
You can place all your programs that you want to mill on a USB stick, but it is also possible to place the computer of the milling machine in your network. This allows you to program your programs outside the machine.

detail MC 1000
Machine STYLE MC 750
X-axis movement mm 760
Y-axis movement mm 440
Z-axis movement mm 460
Table size mm 900 x 410
T-slots mm 16 x 100 x 4
Max. table load kg 350
Height work table mm 820
Distance spindle nose to table mm 100 – 560
Distance spindle nose to column mm 475
hoofdspindel mc 350
Main spindle STYLE MC 750
Main motor power kW 5.5 / 7.5
Max. rpm rpm 8000 (10000)
Spindle taper BT-40
hoofdspindel mc 350
detail MC 1000
X-, Y- en Z-axis STYLE MC 750
Rapid movement m/min 24 / 24 / 24
Feed rate mm/min 10 / 10 / 10
Pressure X-, Y- en Z-axis (nom/max) kN 6.4 / 12.7
14.5 / 28.5 (Z)
Wisselaar mc 350 freesbank
Toolchanger STYLE MC 750
Automatic toolchanger # 16 / 24
Wisselaar mc 350 freesbank
bewerkingscentrum detail
General STYLE MC 750
Weight kg 4600
Machine dimensions (l/w/h) m 2.2 x 2.3 x 3
Work space m 3.7 x 3.3
