STYLE BT 1000 CNC milling machine

The STYLE BT series consists of six models of milling machines, with a number of models available for a fully enclosed machine. The BT 1000 stands for versatility and is suitable for demanding milling work. These milling machines are designed and developed especially for the production of custom work and small series.

Join us on a CNC journey like no other.
Experience the magic of machining in our interactive demo today.

Any questions or would you like more information about this CNC milling machines?

We are happy to support you!

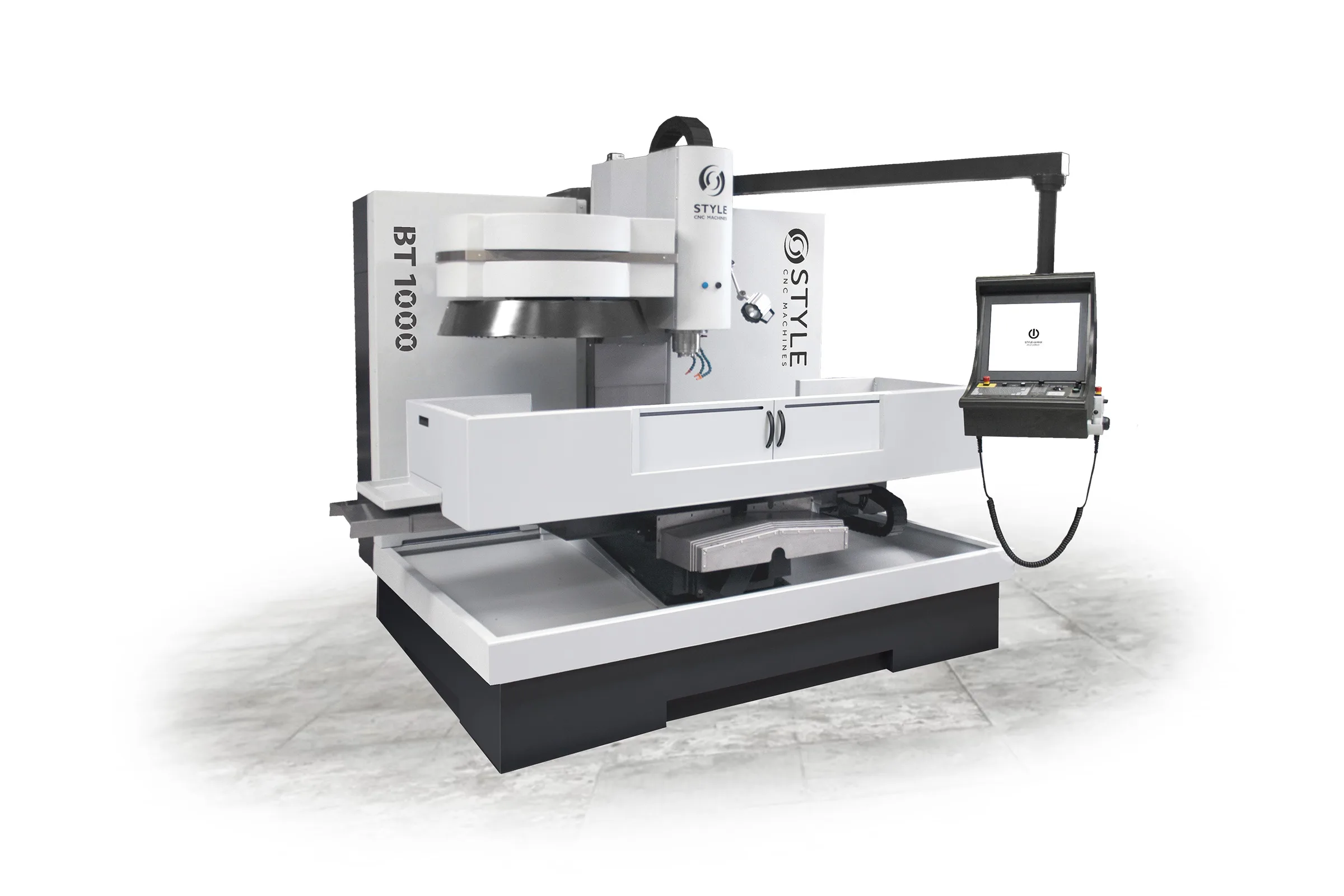

STYLE BT 1000 milling machine, versatility and ergonomics in one milling machine

STYLE BT 1000 milling machine at a glance:

  • Cast iron frame cast in one piece for high loads
  • Accessible controls
  • Stroke X / Y 1000 x 550 mm
  • Table load up to 500 kg
  • Maximum speed 12000 rpm
  • Fully Dutch development and production

Reliable CNC milling machine with the unique STYLE control

With a CNC milling machine from STYLE CNC Machines you can mill high-quality and precise aluminium, brass, stainless steel or other metals. The STYLE Control has been developed by our software team, especially for single pieces and small series. In this way you are assured that your CNC milling machine is user-friendly and that your employees can start using our control system within a few hours.

Programming from the office
You can place all your programs that you want to mill on a USB stick, but it is also possible to place the computer of the milling machine in your network. This allows you to program your programs outside the machine.

BT Machine
Machine BT 1000
X-axis movement mm 1000
Y-axis movement mm 550
Z-axis movement mm 650
Bed width mm 580
Dimensions work table mm 1400 x 410
Maximum table load kg 500
Height work table mm 810
Distance spindle nose to table mm 150 – 800
Distance spindle nose to column mm 610
BT Main spindle
Main spindle BT 1000
Main motor power (S6) kW 7.5 / 11 / 15
Maximum spindle speed rpm 8000 – 12000
Spindle taper BT – SK/DIN698713 40

3 Choose for a BT or SK/DIN69871 spindle taper

BT Main spindle
BT X- Y- Z- Axis
X-, Y- and Z- axis BT 1000
Rapid movement m/min 8
Feed rate m/min 4
BT Tool changer
Tool changer BT 1000
Automatic tool changer # 246

6 Choice of vertical / horizontal

BT Tool changer
BT General
General BT 1000
Weight kg 3800
Machine dimensions (l/w/h) m 2.8 x 2.0 x 2.5
BT Options
Options BT 1000
Sheet metal open / semi
Integrated 4th axis option
Coolant through the spindle MC 1000
BT Options
