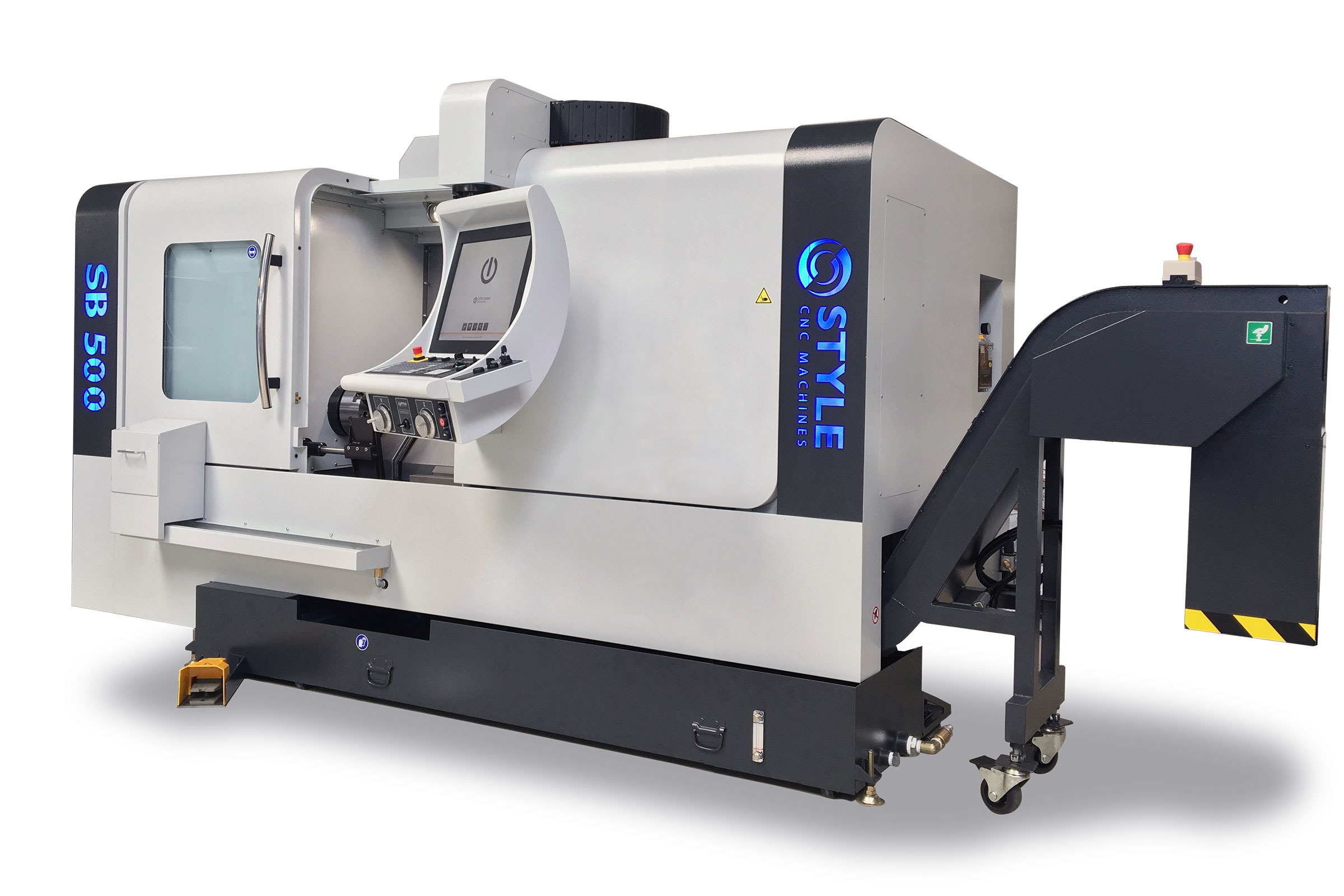

STYLE SB 500 CNC lathe
The STYLE sloping bed series consists of three models. This series has been designed on the basis of the knowledge and experience of STYLE and of our customers where the wishes and requirements have been translated into machines with a 45 degree frame from one piece cast iron for high load and stability. The STYLE SB500 is the largest inclined bed in the range.
Any questions or would you like more information about this CNC lathe?
We are happy to support you!
Erwin Koelewijn
Michel Haaima
Jeroen ter Haar
STYLE SB 500 CNC lathe, the best slant bed lathe for the turning specialist
STYLE SB 500 CNC lathe in brief:
- 45 degree frame cast in one piece for high loads
- Wide spaced guides provide a very stable support for top support
- Turning diameter of 610 mm
- Speed maximum 3500 rpm (15 / 18.5 kW)
- Available with STYLE control and also with other controls
Optimal productivity and flexibility with unique STYLE control on an SB 500

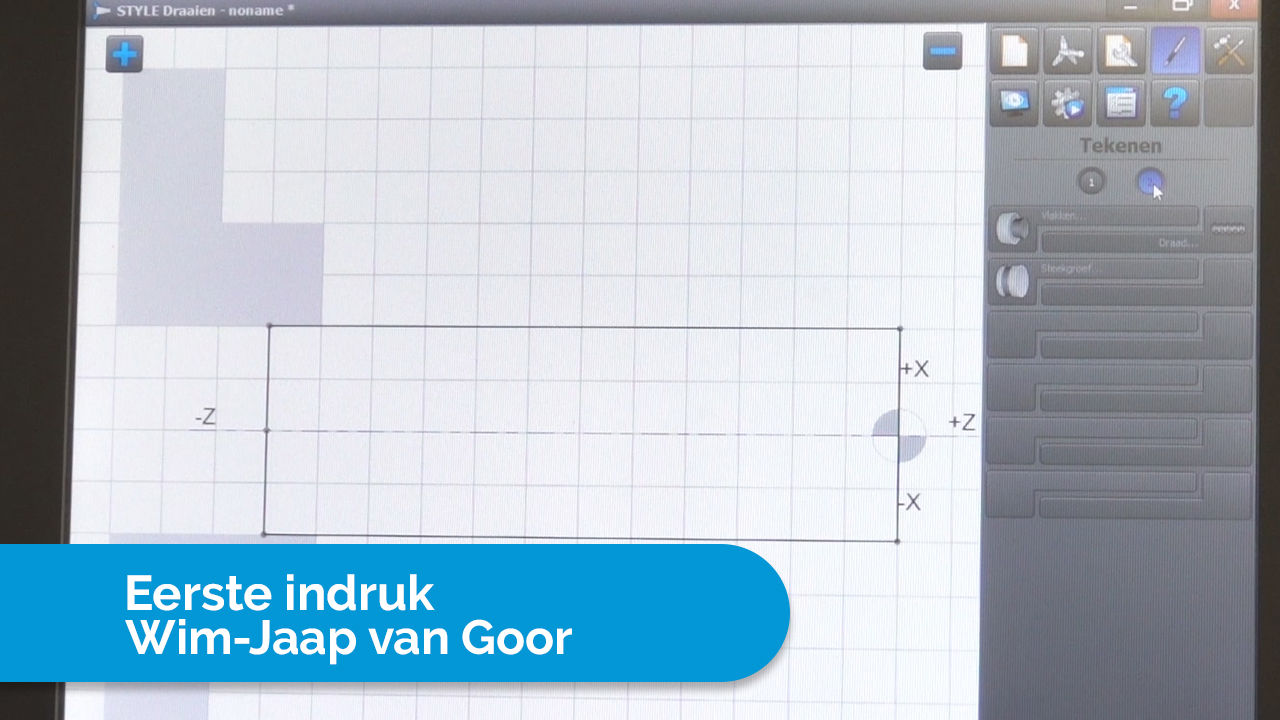

All STYLE CNC machines are delivered with the unique STYLE Control, including the SB500. Some advantages of the unique control are that DxF files can be imported directly, possibility to run large G-code programs and the 3D simulation program with which the production time can be calculated and tested. The SB series has been ergonomically developed so that tools and workpieces can be easily changed. The 45-degree bed, in combination with the easy-to-open safety doors, make loading and unloading large products easy.
Programming from the office
You can place all your programs that you want to mill on a USB stick, but it is also possible to place the computer of the milling machine in your network. This allows you to program your programs outside the machine.
| Machine | STYLE SB | 500 |
| Maximum swing | mm | 612 |
| Swing over carriage cover | mm | 390 (700) / 420 (1200) |
| Maximum turned diameter | mm | 500 |
| Maximum turned length | mm | 700 / 1200 |
| Carriage inclination | º | 30 |
| Main spindle | STYLE SB | 500 |
| Main motor power | kW | 15 / 18.5 (18.5 / 22) |
| Max. spindle speed | rpm | 3500 (2700 / 2500) |
| Spindle taper | A2-8 (A2-11 / A2-11) | |
| Spindle bore | ø mm | 86 (101 / 116) |
| Hole through draw bar | ø mm | 75 (90 / 105) |
| Hydraulic chuck diameter | ø mm | 250 (300 / 380) |
| X- and Z-axis | STYLE SB | 500 |
| Rapid movement X / Z | m/min | 20 / 24 |
| Feed rate | m/min | 10 |
| X / Z axis slide way configuration | Box |
| Tail stock | STYLE SB | 500 |
| Quill | mm | ø 85 |
| Quill stroke | mm | 120 |
| Quill taper | MT | 5 |
| Turret system | STYLE SB | 500 |
| Tool change type | Servo / Hydraulic | |
| Type tool taper | BOT / VDI | |
| Size | 40 | |
| Number of tool stations | # | 12 |
| Turning tool shank dimensions | mm | 25 |
| Maximum boring bar diameter | ø mm | 40 |
| General | STYLE SB | 500 |
| Weight | kg | 5500 / 6000 |
| Machine dimensions (l/w/h) | m | 3.0 x 1.8 x 1.8 3.6 x 1.8 x 1.8 |
