STYLE SB 250 CNC lathe

The STYLE sloping bed series consists of three models. This series has been designed on the basis of the knowledge and experience of STYLE and of our customers where the wishes and requirements have been translated into machines with a 45 degree frame from one piece cast iron for high load and stability. The STYLE SB250 is the smallest inclined bed in the range.

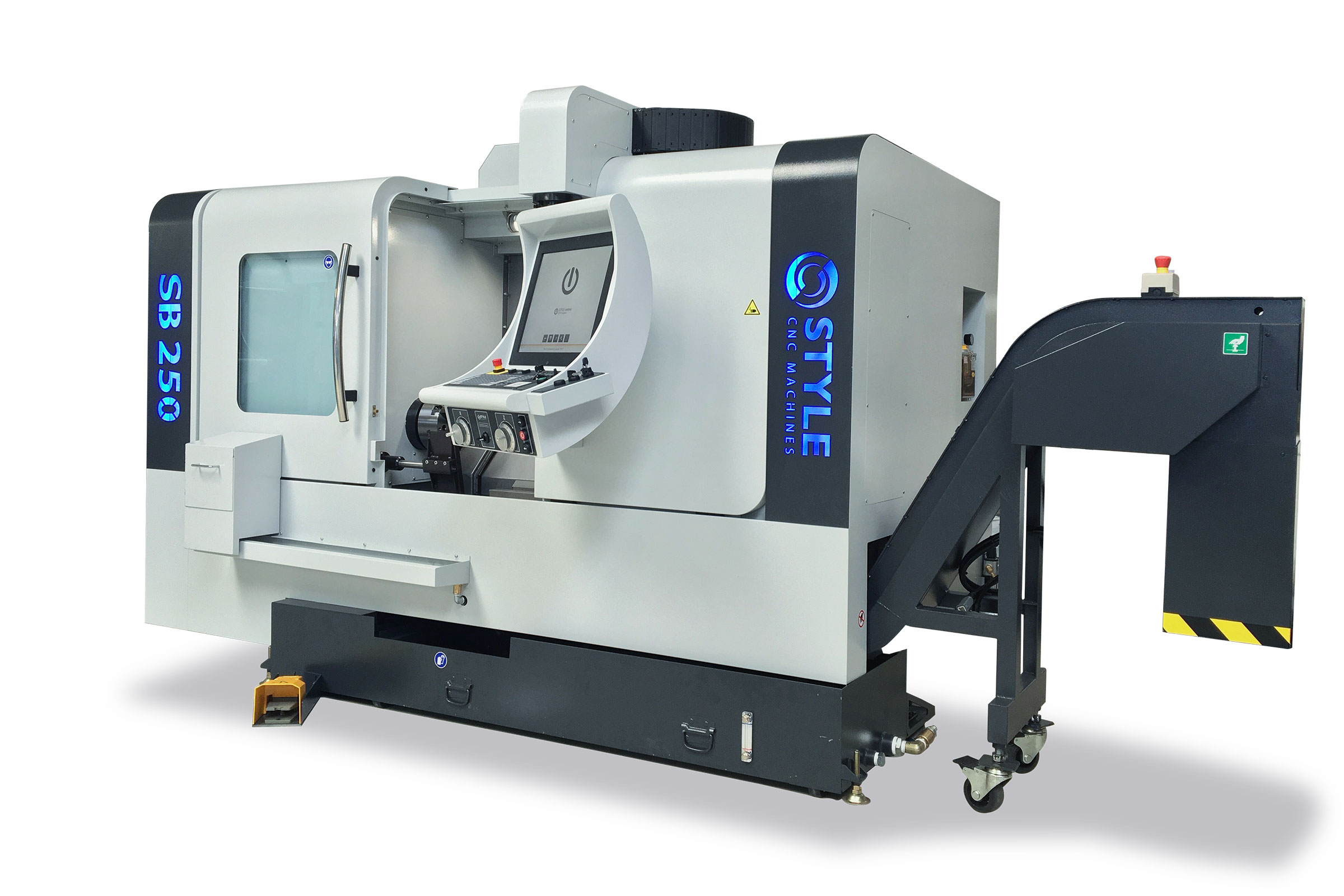

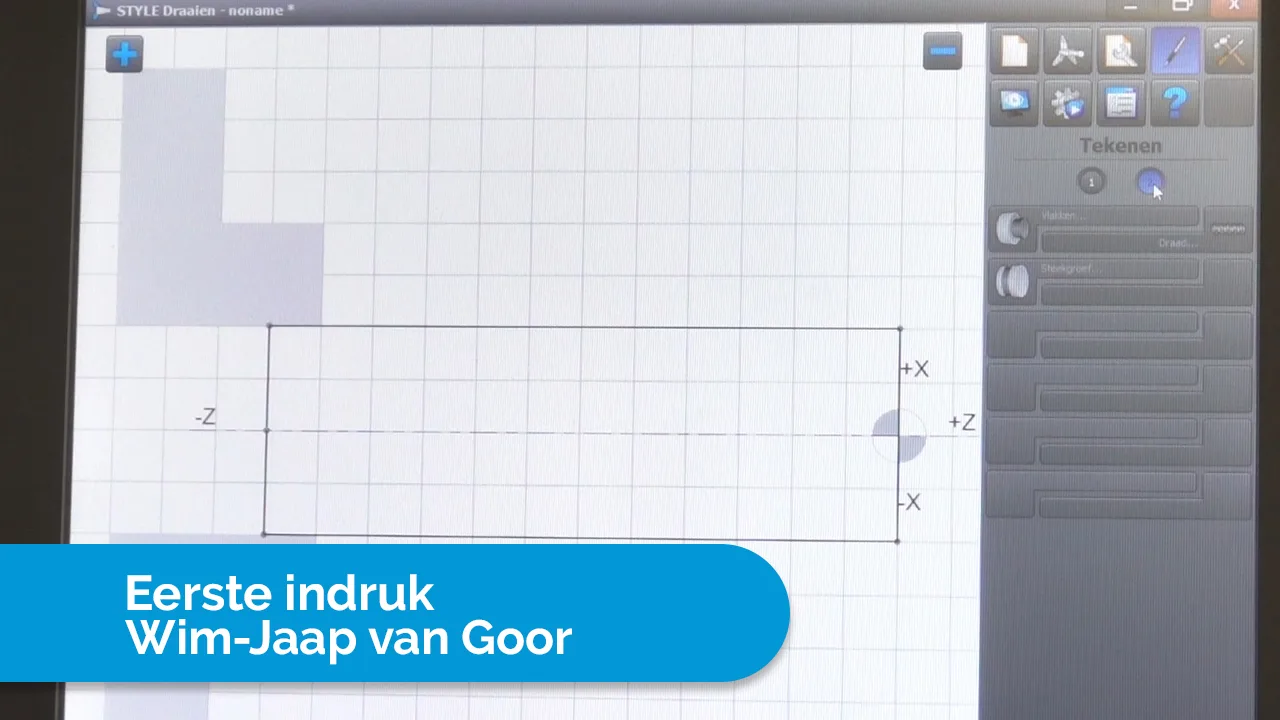

STYLE SB 250 CNC Schuinbed draaibank Thumbnail video sb 250 bestuing eerste indruk

Any questions or would you like more information about this CNC lathe?

We are happy to support you!

STYLE SB 250 CNC lathe, the best lathe for the demanding specialist

STYLE SB 250 CNC lathe in brief:

  • 45 degree frame cast in one piece for high loads
  • Wide spaced guides provide a very stable support for top support
  • Turning diameter of 420 mm
  • Speed ​​maximum 6000 rpm (11 kW)
  • Available with STYLE control

Modern CNC machine equipped with STYLE control as standard

The SB slant bed CNC lathes are designed to deliver high performance in combination with the simple STYLE Control, but are also available with other controls. The accessible STYLE CNC control is suitable for the novice operator and there are extensive functionalities for the experienced operator. The STYLE Control has been developed for the quick and easy drawing and execution of single items and small series. Complex operations such as programming with G codes are also extremely easy with our CNC control system.

Programming from the office
You can place all your programs that you want to turn on a USB stick, but it is also possible to place the computer of the milling machine in your network. This allows you to program your programs outside the machine.

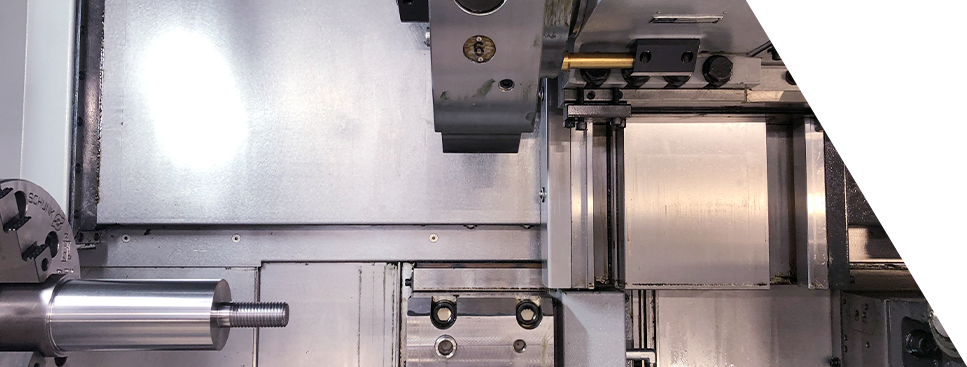

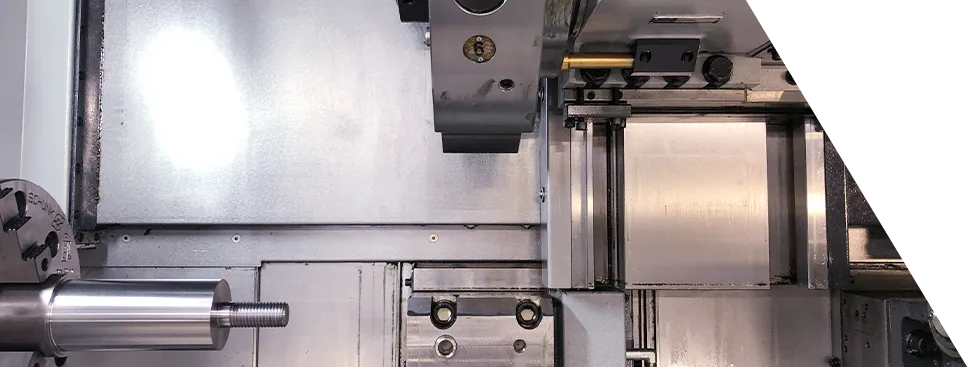

SB detail foto
Machine STYLE SB 250
Maximum swing mm 420
Swing over carriage cover mm 330
Maximum turned diameter mm 200
Maximum turned length mm 550
Carriage inclination º 45

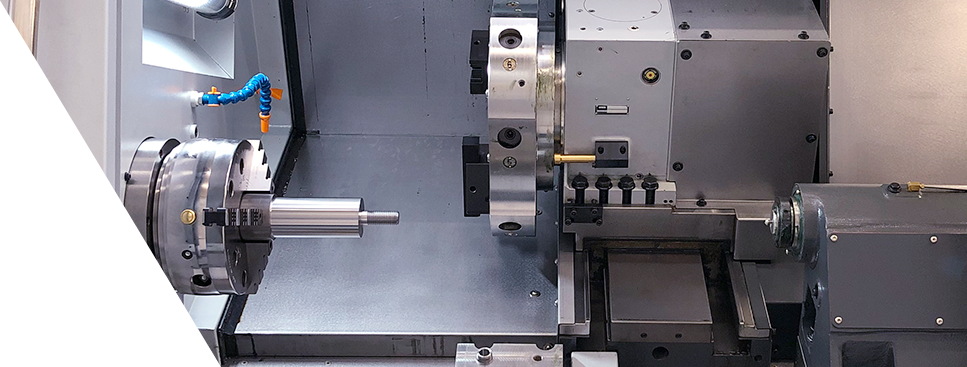

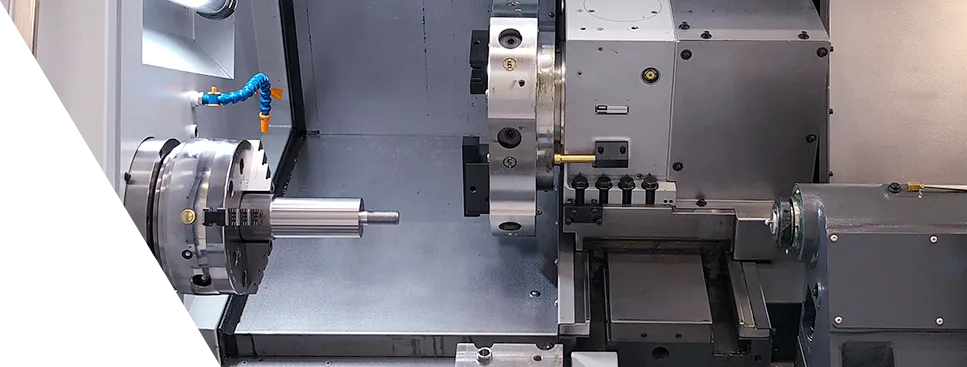

SB hoofdspindel detail foto
Main spindle STYLE SB 250
Main motor power kW 11 / 15
Max. spindle speed rpm 6000 (4800)
Spindle taper A2-5 (A2-6)
Spindle bore ø mm 56 (62)
Hole through draw bar ø mm 44 (52)
Hydraulic chuck diameter ø mm 170 (200)
SB hoofdspindel detail foto

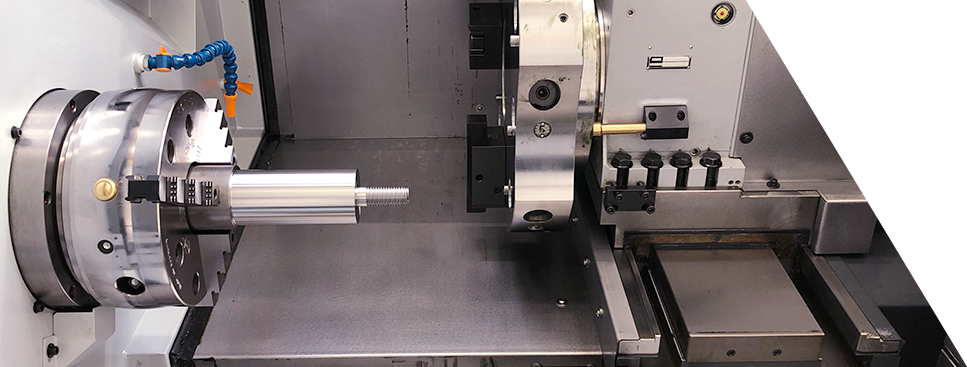

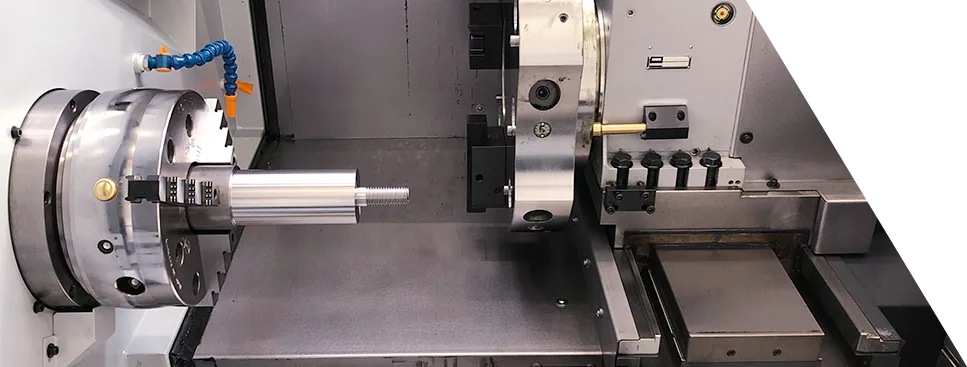

detail SB 250
X- and Z-axis STYLE SB 250
Rapid movement X / Z m/min 12 / 20
Feed rate m/min 10
X / Z axis slide way configuration Linear

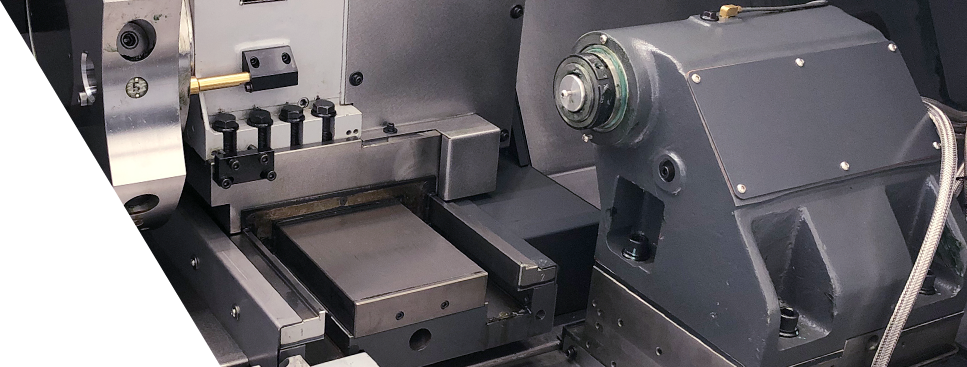

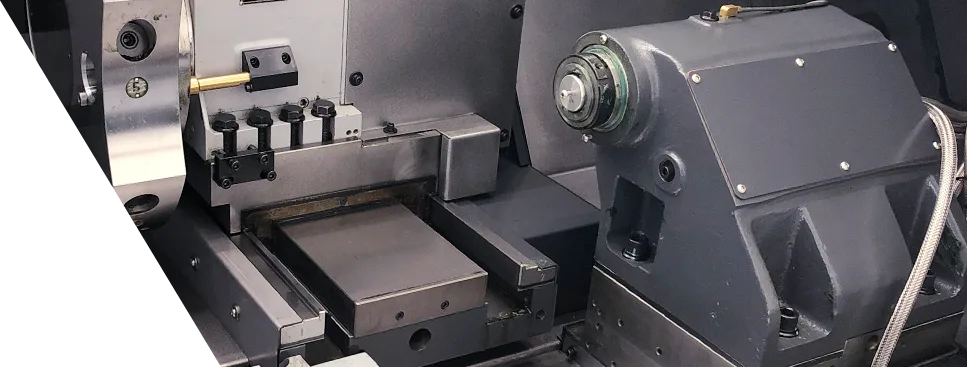

detail losse kop
Tail stock STYLE SB 250
Quill ø mm 75
Quill stroke mm 100
Quill taper MT 4
detail losse kop

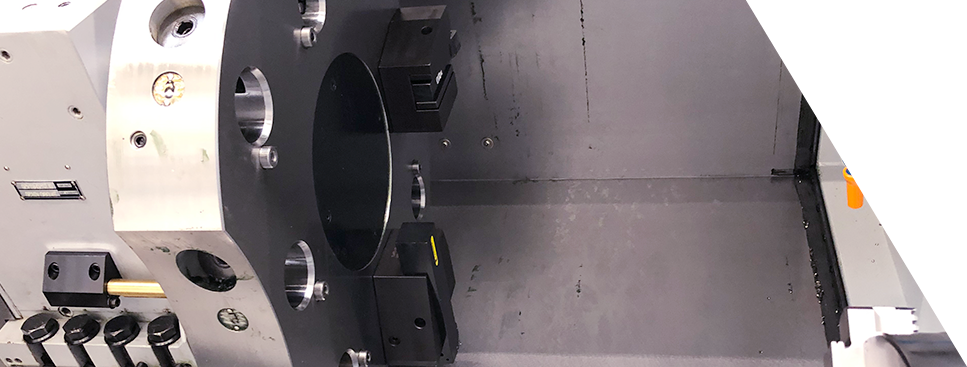

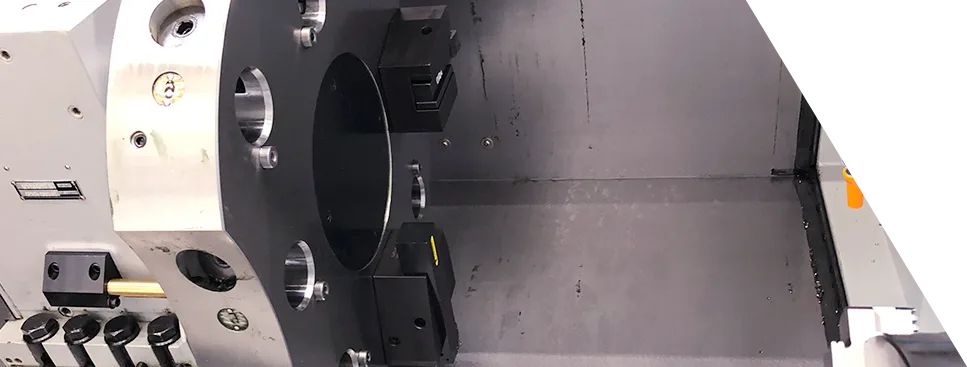

detail productwisselaar
Turret system STYLE SB 250
Tool change type Servo
Type tool taper BOT / VDI
Size 30
Number of tool stations # 8 / 10
Turning tool shank dimensions mm 20
Maximum boring bar diameter ø mm 32

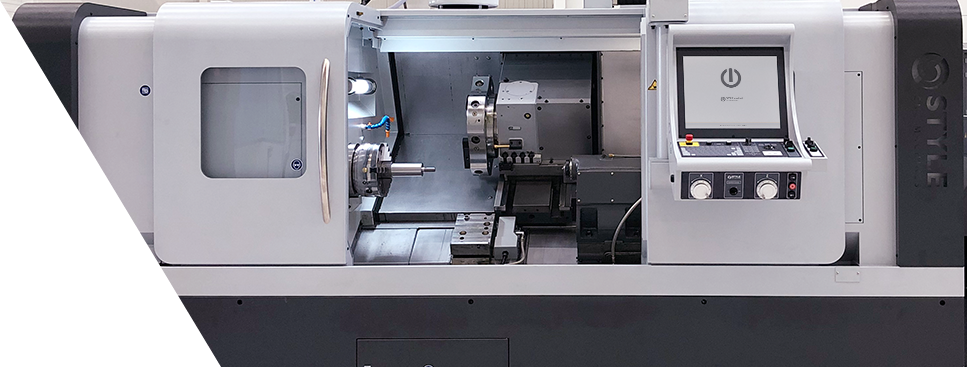

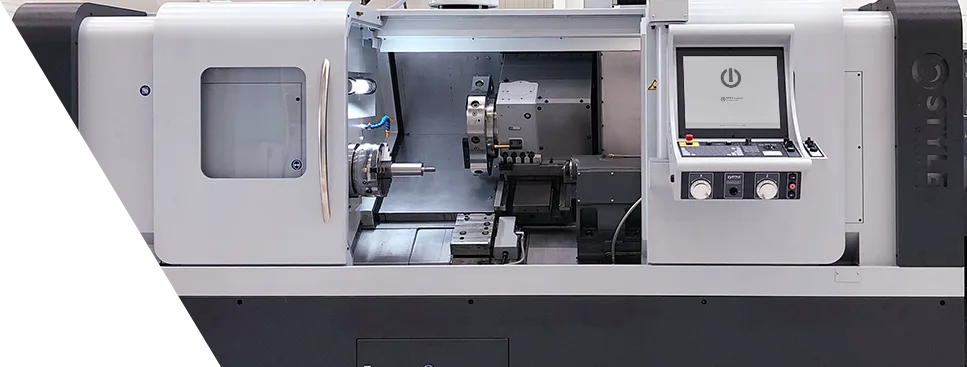

header SB machines
General STYLE SB 250
Weight kg 3800
Machine dimensions (l/w/h) m 3.0 x 1.7 x 1.8 (ø 56)
3.6 x 1.7 x 1.9 (ø 62)
