STYLE MC 350 CNC milling machine

The STYLE MC series are the right machining centers for the demanding machine operators. Machining centers are known for their wide working range and versatility when it comes to machining parts. These machining centers are suitable for single pieces and small series. The STYLE MC 350 is a CNC controlled machine equipped with our very accessible STYLE CNC control system with a clear view of the drawing and product.

STYLE MC 350 CNC bewerkingscentrum introductie frezen besturing

Any questions or would you like more information about this milling machine?

We are happy to support you!

STYLE MC 350 CNC milling machine, the CNC milling machine for the demanding operator

STYLE MC 350 machining center at a glance:

  • Class C3 prestressed ball screws prevent thermal expansion for high milling accuracy
  • The X / Y / Z axis is driven directly by the axis motors, which ensures high positioning
  • Stroke X-axis: 350 mm, Stroke Y-axis: 210 mm, Stroke Z-axis: 340 mm
  • Table size 810 x 250 mm
  • 0 – 8000 rpm at 3.7 kW

The machining center with very accessible controls

The MC 350 machining center is equipped with a very stable cast iron frame with linear guides. The machine was built and designed by real Dutch machine builders. The machining center MC series is a line of closed, compact milling machines with an X stroke of 350 mm respectively, a modern CNC machine for the production and flexible machining of parts. The control system offers novice machineries the accessibility to get started with just a few hours of training and the experienced operator the tools to make high-quality complex products.

Programming from the office
You can place all your programs that you want to mill on a USB stick, but it is also possible to place the computer of the milling machine in your network. This allows you to program your programs outside the machine.

detail MC 1000
Machine STYLE MC 350
X-axis movement mm 350
Y-axis movement mm 210
Z-axis movement mm 340

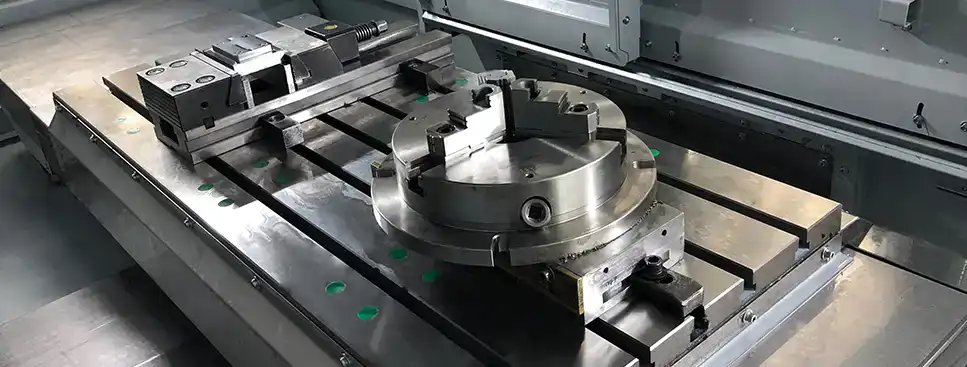

Table size mm 810 x 250
T-slots mm 3 x 16
Max. table load kg 80
Height work table mm 850
Distance spindle nose to table mm 50 – 390
Distance spindle nose to column mm 260
hoofdspindel mc 350

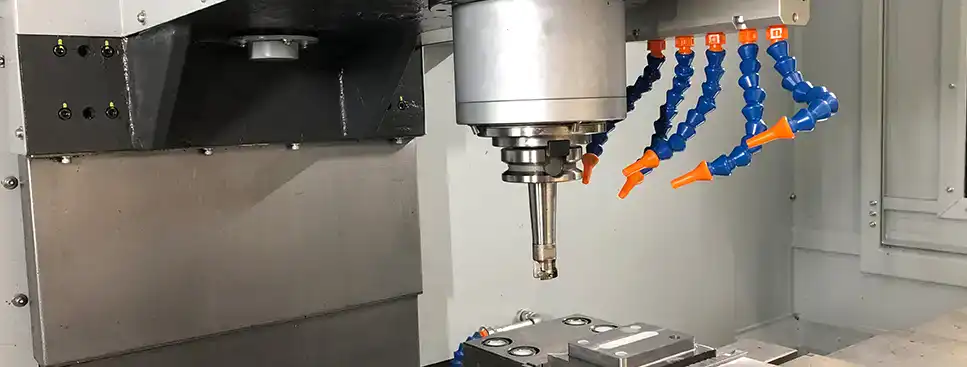

Main spindle STYLE MC 350
Main motor power kW 3.7
Max. rpm rpm 0 – 8000
Spindle taper BT-30
hoofdspindel mc 350
detail MC 1000
X-, Y- en Z-axis STYLE MC 350
Rapid movement m/min 15 / 15 / 15
Feed rate mm/min 10 / 10 / 10
Pressure X-, Y- en Z-axis (nom/max) kN 2.9 / 4.4
Wisselaar mc 350 freesbank

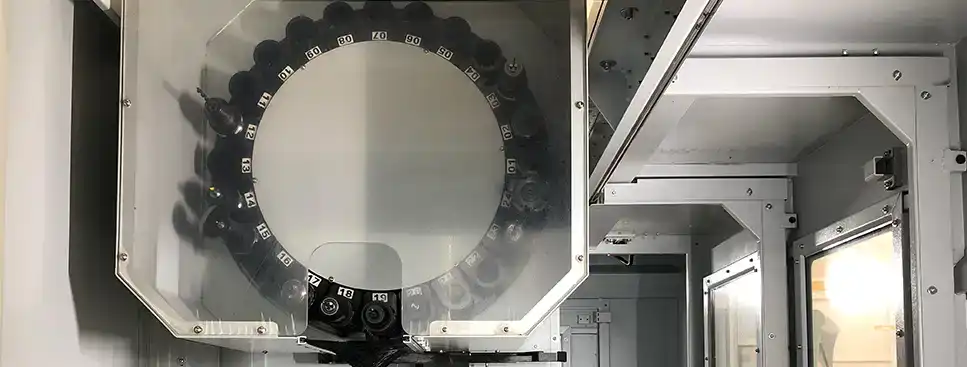

Tool changer STYLE MC 350
Automatic toolchanger # 8
Wisselaar mc 350 freesbank
bewerkingscentrum detail

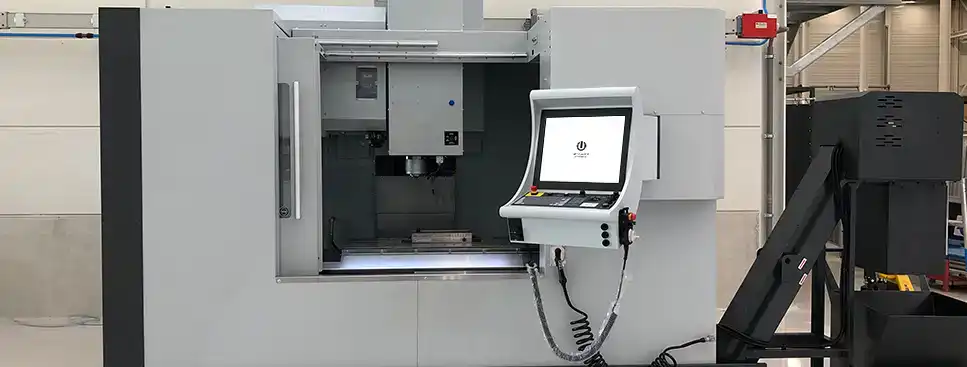

General STYLE MC 350
Weight kg 1400
Machine dimensions (l/w/h) m 1.4 x 1.4 x 2.0
Work space m 2.9 x 2.9
