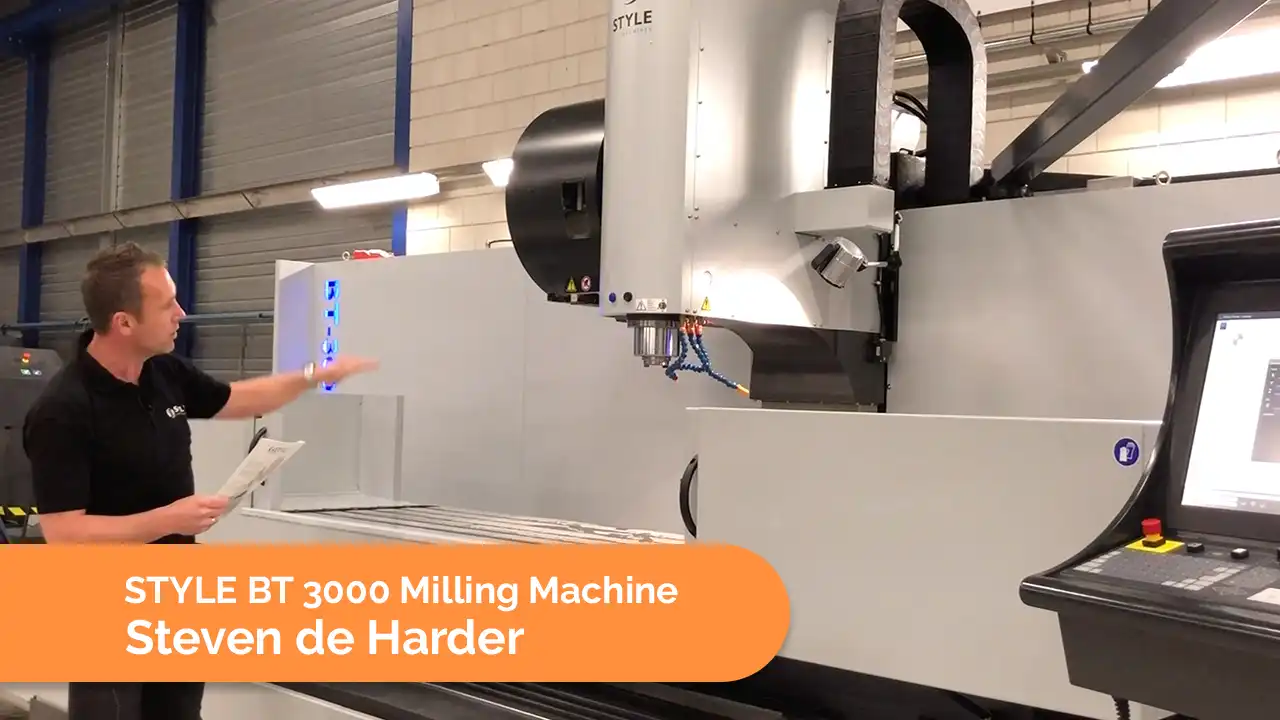

STYLE BT 3000 CNC milling machine

The STYLE BT series consists of six models of milling machines, with a number of models available for a fully enclosed machine. The BT 3000 is the largest STYLE milling machine in the range and therefore the most versatile for the largest customization. These milling machines are designed and developed especially for the production of custom work and small series.

Any questions or would you like more information about this milling machine?

We are happy to support you!

STYLE BT 3000 CNC milling machine, the most versatile milling machine for the largest customization

STYLE BT 3000 freesbank at a glance:

  • Cast iron frame cast in one piece for high loads
  • Accessible controls
  • Stroke X / Y 3000 x 800/1100 mm
  • Table load up to 3000 kg
  • Maximum speed 12000 rpm
  • Fully Dutch development and production

Complete machining solution with STYLE BT 3000

The simple control allows operations such as planing and drilling in a few clicks. Complex operations such as dimensional milling, working with a 4th A-axis and programming with G codes are also extremely simple. Each CNC milling machine in our range has been developed with the highest possible precision, guaranteed reliability, Dutch design and an innovative, intuitive control.

Programming from the office
You can place all your programs that you want to mill on a USB stick, but it is also possible to place the computer of the milling machine in your network. This allows you to program your programs outside the machine.

Machine STYLE BT 3000
X-axis movement mm 3000
Y-axis movement mm 800 / 1100
Z-axis movement mm 700 / 1100
Bed width mm 1810 / 2550
Work table mm 3200 x 800 / 3200 x 1100
T-Slots mm 5 x 22
Max. table load kg 3000
Height work table mm 950 / 1070
Distance spindle nose to table mm 150 – 850 / 150 – 1250
Distance spindle nose to column mm 880 / 1190
hoofdspindel freesbank
Main spindle STYLE BT 3000
Main motor power kW 22 / 37
Max. rpm rpm 6000 – 12000 (BT-40)
6000 – 8000 (BT-50)
Spindle taper BT-40 / BT-50
hoofdspindel freesbank
X-, Y- en Z-axis STYLE BT 3000
Rapid movement m/min 8
Feed rate mm/min 0,01 – 4000
Pressure X-, Y- en Z-axis (nom/max) kN 28.9 / 57.9 (X en Y)
36.9 / 73.8 (Z)
wisselaar bt freesbank
Toolchanger STYLE BT 3000
Automatic toolchanger # 24
wisselaar bt freesbank
detail freesbank deuren
General STYLE BT 3000
Weight kg 11500 / 23000
Machine dimensions (l/w/h) m 7.4 x 3.1 x 2.9
7.6 x 3.4 x 3.9
detail opties freesbank
Options STYLE BT 3000
Fully enclosed sheet metal with
chip conveyor
option
Coolant through spindle option
Integrated 4th axis option
detail opties freesbank
