STYLE BT 1500+ CNC milling machine
The STYLE BT series consists of six models of milling machines, with a number of models available for a fully enclosed machine. The BT 1500+ is the most reliable powerhouse for demanding milling work. These milling machines are designed and developed especially for the production of custom work and small series.
Any questions or would you like more information about this milling machine?
We are happy to support you!
Erwin Koelewijn
Michel Haaima
Jeroen ter Haar

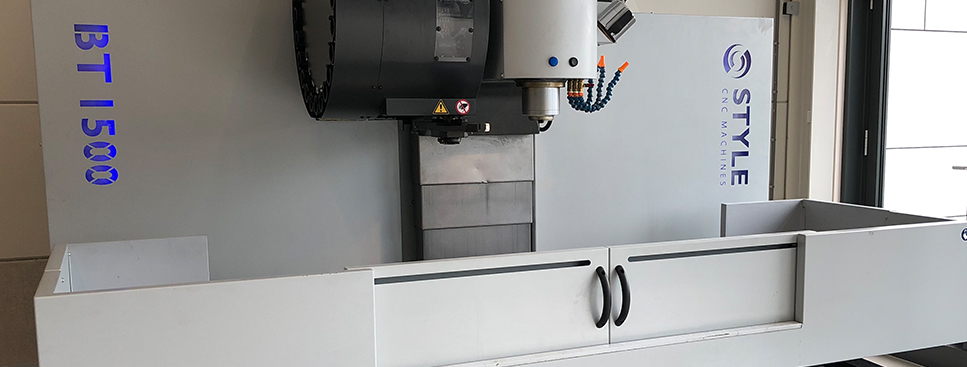

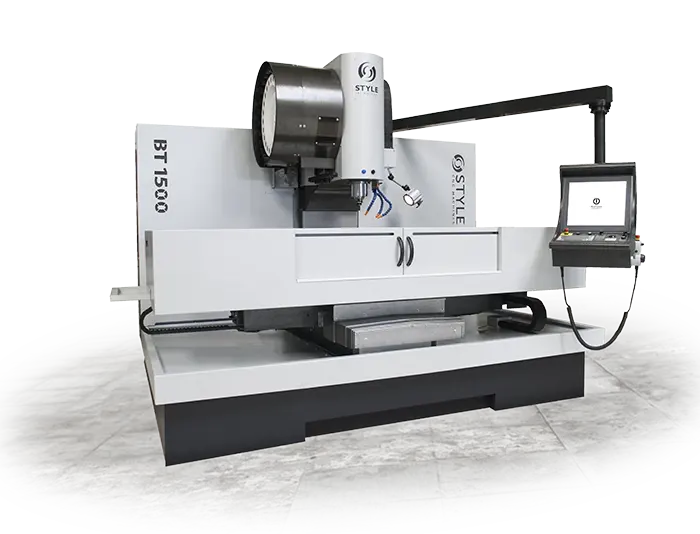

STYLE BT 1500+ CNC milling machine, the most reliable powerhouse
STYLE BT 1500+ freesbank at a glance:
- Cast iron frame cast in one piece for high loads
- Accessible controls
- Stroke X / Y 1500 x 650 mm
- Table load up to 1000 kg
- Maximum speed 12000 rpm
- Fully Dutch development and production
Complete machining solution with STYLE BT 1500+

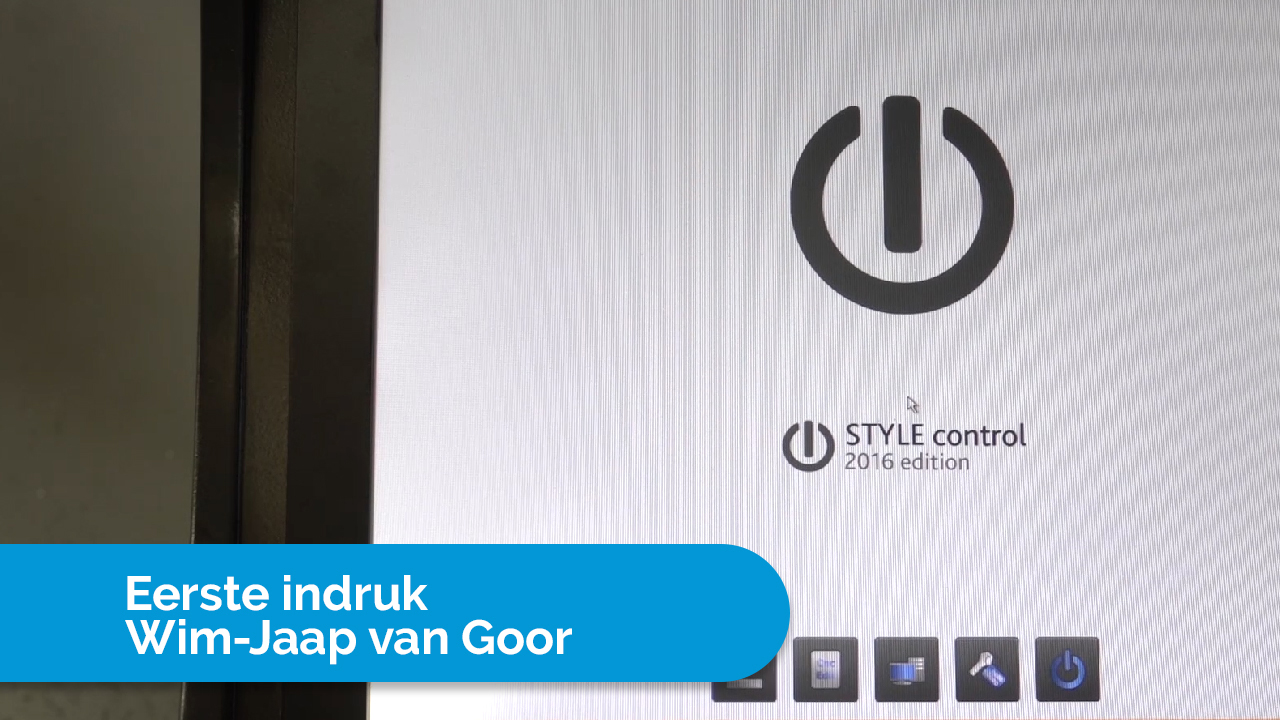

With our extensive experience we have developed a complete range of machines that lead the way in reliability, price and ease of use. CNC milling on the STYLE BT 1500+, in combination with our CNC Control, is a guarantee of quality. Every day, we work with our team on innovation in CNC milling and then deliver a complete solution for metalworking.
Programming from the office
You can place all your programs that you want to mill on a USB stick, but it is also possible to place the computer of the milling machine in your network. This allows you to program your programs outside the machine.

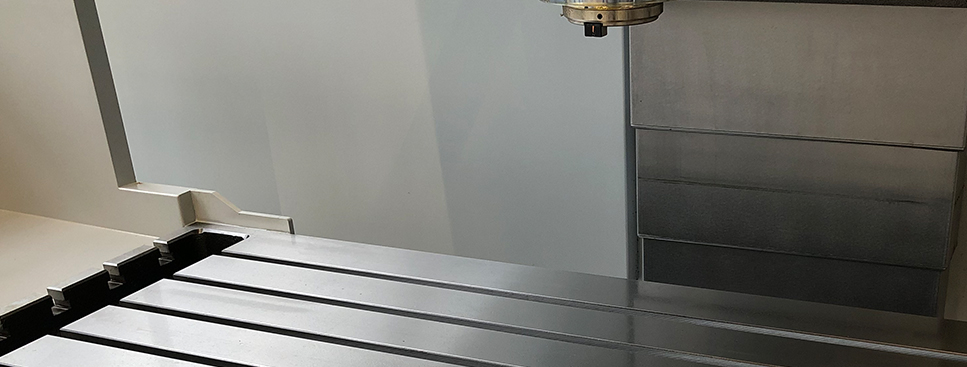

| Machine | STYLE BT | 1500+ |
| X-axis movement | mm | 1500 |
| Y-axis movement | mm | 650 |
| Z-axis movement | mm | 700 |
| Bed width | mm | 700 |
| Work table | mm | 1850 x 610 |
| T-slots | mm | 5 x 18 |
| Max. table load | kg | 1000 |
| Height work table | mm | 850 |
| Distance spindle nose to table | mm | 80 – 780 |
| Distance spindle nose to column | mm | 660 |

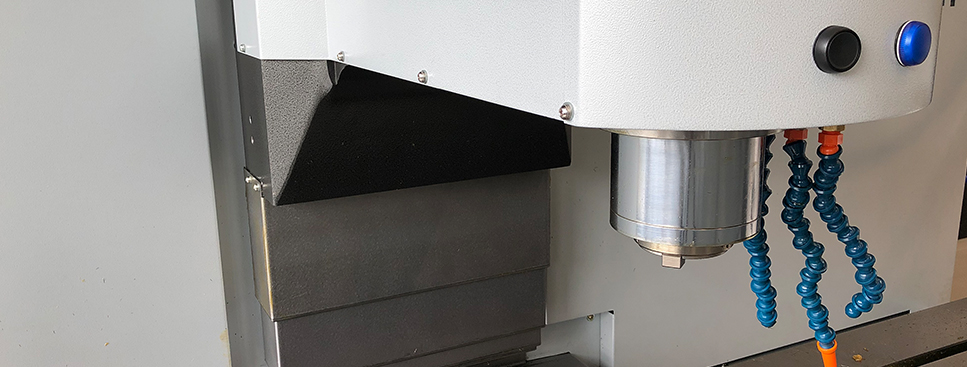

| Main spindle | STYLE BT | 1500+ |
| Main motor power | kW | 11 / 15 |
| Max. rpm | rpm | 6000 / 12000 |
| Spindle taper | BT-40 |

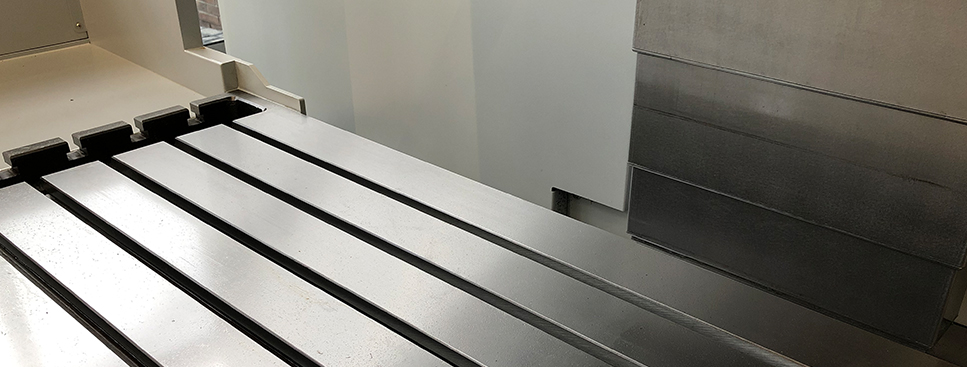

| X-, Y- en Z-axis | STYLE BT | 1500+ |
| Rapid movement | m/min | 8 |
| Feed rate | mm/min | 0,01 – 4000 |
| Pressure X-, Y- and Z-axis (nom/max) | kN | 18 / 36.2 |

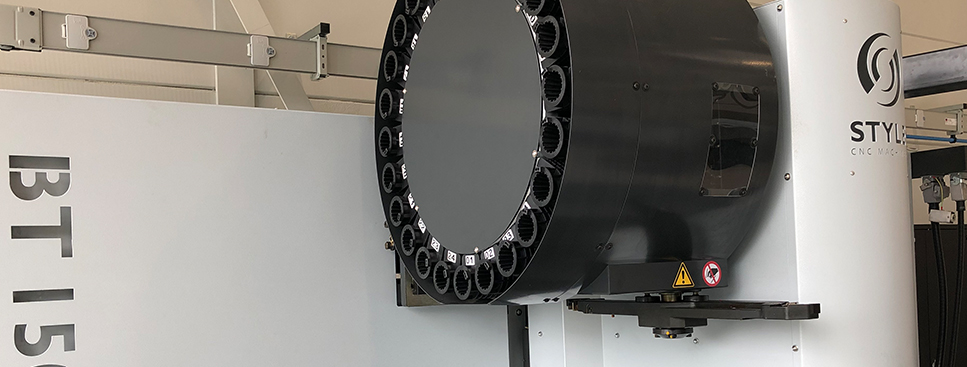

| Toolchanger | STYLE BT | 1500+ |
| Automatic toolchanger | # | 24 |
| General | STYLE BT | 1500+ |
| Weight | kg | 5800 |
| Machine dimensions (l/w/h) | m | 3.1 x 2.3 x 2.8 |
| Options | STYLE BT | 1500+ |
| Fully enclosed sheet metal with chipconveyor |
option | |
| Coolant through the spindle | option | |

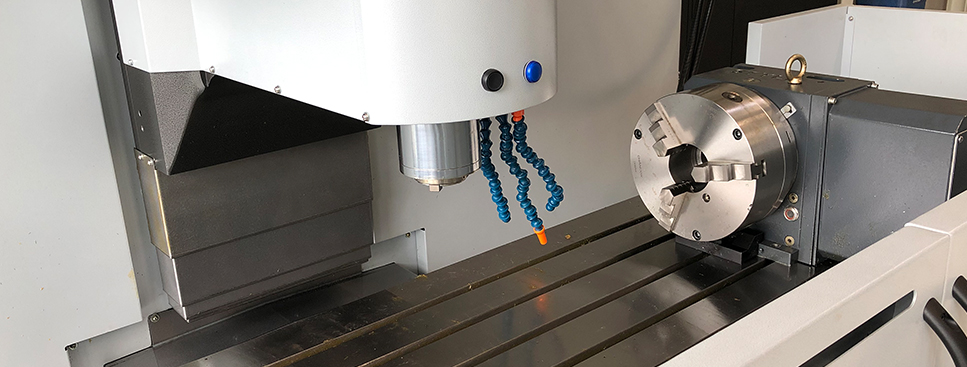

| Integrated 4th axis | option |
