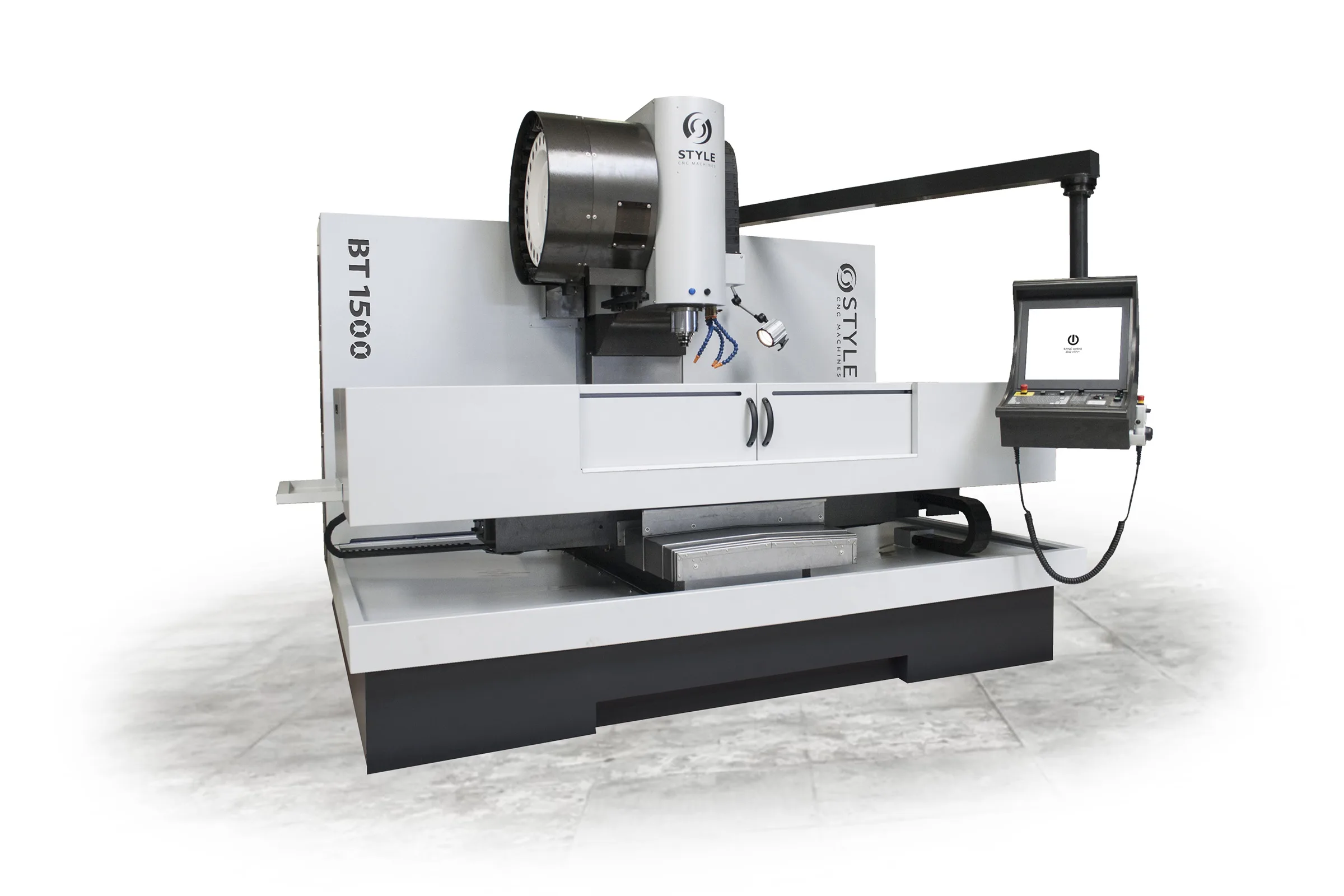

STYLE BT 1500 CNC milling machine

The STYLE BT series consists of six models of milling machines, with a number of models available for a fully enclosed machine. The BT 1500 is our best-selling milling machine where versatility and ergonomics are of paramount importance. These milling machines are designed and developed especially for the production of custom work and small series.

Join us on a CNC journey like no other.
Experience the magic of machining in our interactive demo today.

Embark on the CNC Rollercoaster!
CNC milling machinesSTYLE BT 1500 CNC milling machine

Any questions or would you like more information about this CNC milling machines?

We are happy to support you!

Alex Bekema

+31 6 5025 5719

a.bekema@stylecncmachines.com

STYLE BT 1500 CNC milling machine, the most versatile milling machine in its class

STYLE BT 1500 milling machine at a glance:

  • Cast iron frame cast in one piece for high loads
  • Accessible controls
  • Stroke X / Y 1500 x 650 mm (59.06 x 25.59 in)
  • Table load up to 1000 kg (2205 lbs)
  • Maximum speed 12000 rpm
  • Fully Dutch development and production

Easy CNC milling with the STYLE control

The simple STYLE control ensures that you get the most out of the extensive possibilities of our milling machines. Every edit is easy to enter with a few mouse clicks and can be seen immediately on the 19 ″ touchscreen. This saves significant time so that your processes are used more efficiently and the quality is guaranteed. With a machining solution from STYLE, your company is completely up to date and ready for the future.

Programming from the office
You can place all your programs that you want to mill on a USB stick, but it is also possible to place the computer of the milling machine in your network. This allows you to program your programs outside the machine.

Get the brochure: metric specs

Get the brochure: imperial specs

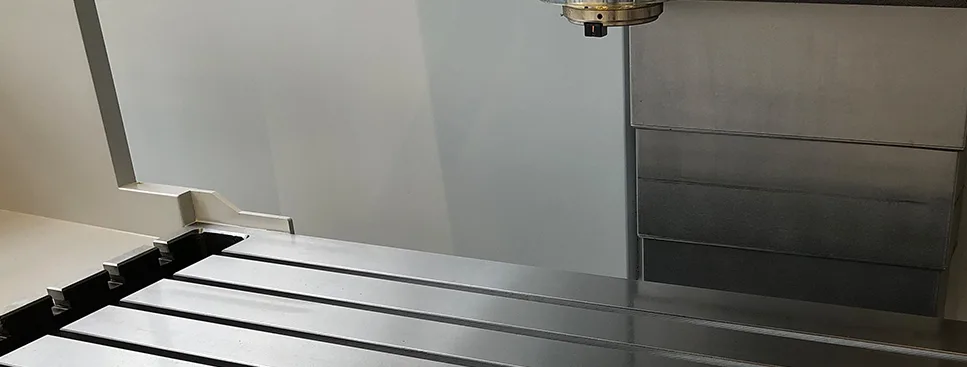

BT Machine
Machine Metric Imperial
X-axis movement 1500 mm 59.06 in
Y-axis movement 650 mm 25.59 in
Z-axis movement 600 mm 23.62 in
Bed width 700 mm 27.56 in
Dimensions work table 1850 x 610 mm 72.83 x 24.02 in
Maximum table load 1000 kg 2205 lbs
Height work table 850 mm 33.46 in
Distance spindle nose to table 130 – 730 mm 5.12 – 28.74 in
Distance spindle nose to column 625 mm 24.61 in

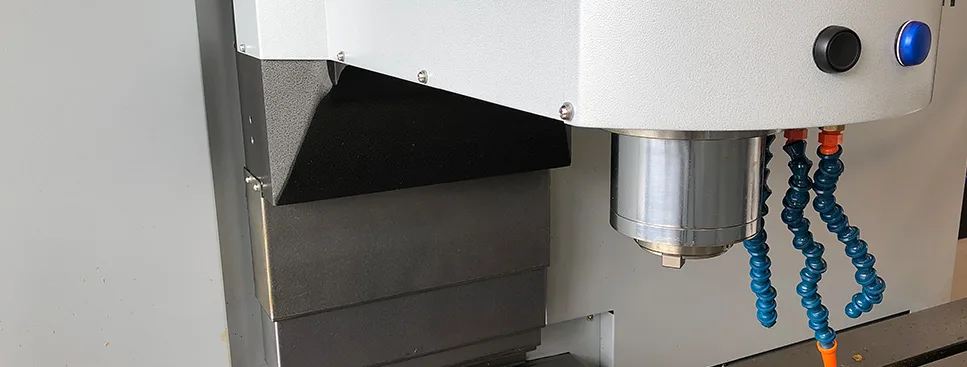

BT Main spindle
Main spindle Metric Imperial
Main motor power (S6) 7.5 / 11 / 15 kW 10.1 / 14.8 / 20.1 hp
Maximum spindle speed 8000 – 12000 rpm 8000 – 12000 rpm
Spindle taper BT – SK/DIN698713 40 BT – SK/DIN698713 40

3 Choose for a BT or SK/DIN69871 spindle taper

BT Main spindle

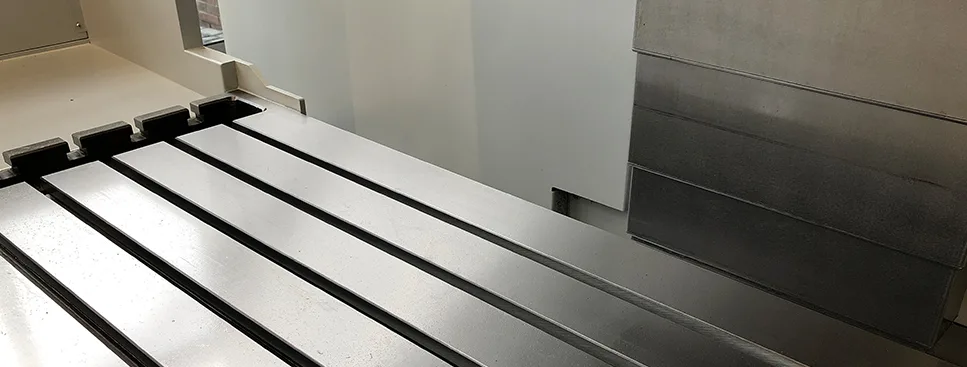

BT X- Y- Z- Axis
X-, Y- and Z- axis Metric Imperial
Rapid movement 8 m/min 315 ipm
Feed rate 4 m/min 157 ipm

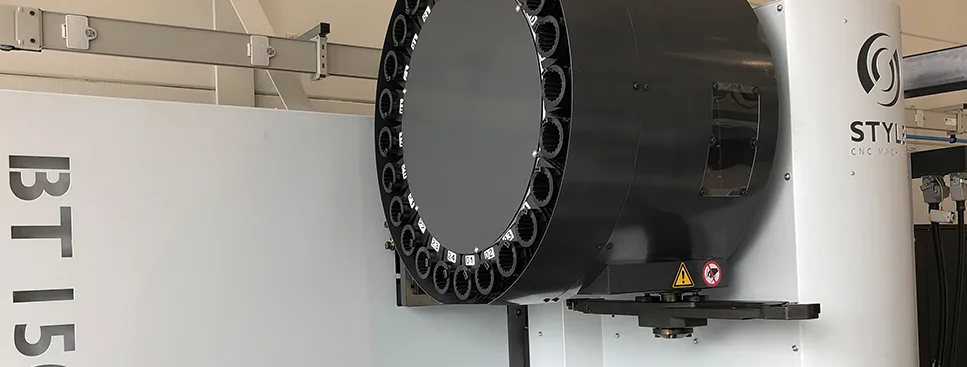

BT Tool changer
Tool changer
Automatic tool changer # 246

6 Choice of vertical / horizontal

BT Tool changer
BT General
General Metric Imperial
Weight 5300 kg 11684 lbs
Machine dimensions (l/w/h) 3.1 x 2.3 x 2.5 m 122.05 x 90.55 x 98.43 in

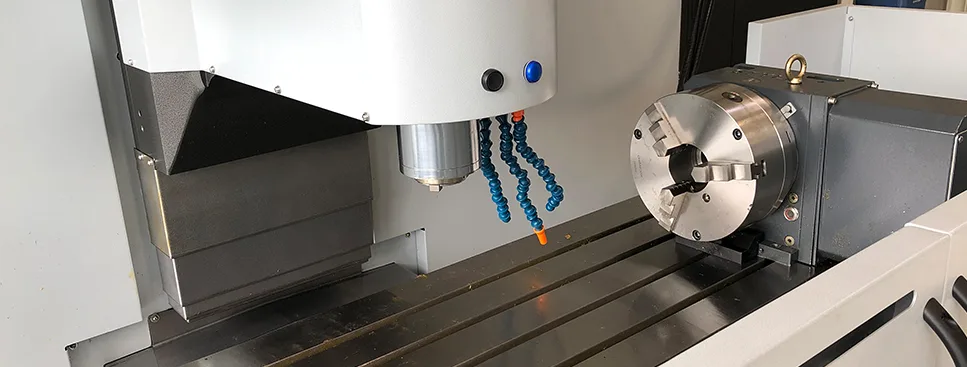

BT Options
Options
Sheet metal open / semi
Integrated 4th axis option
Coolant through the spindle MC 1500
BT Options
