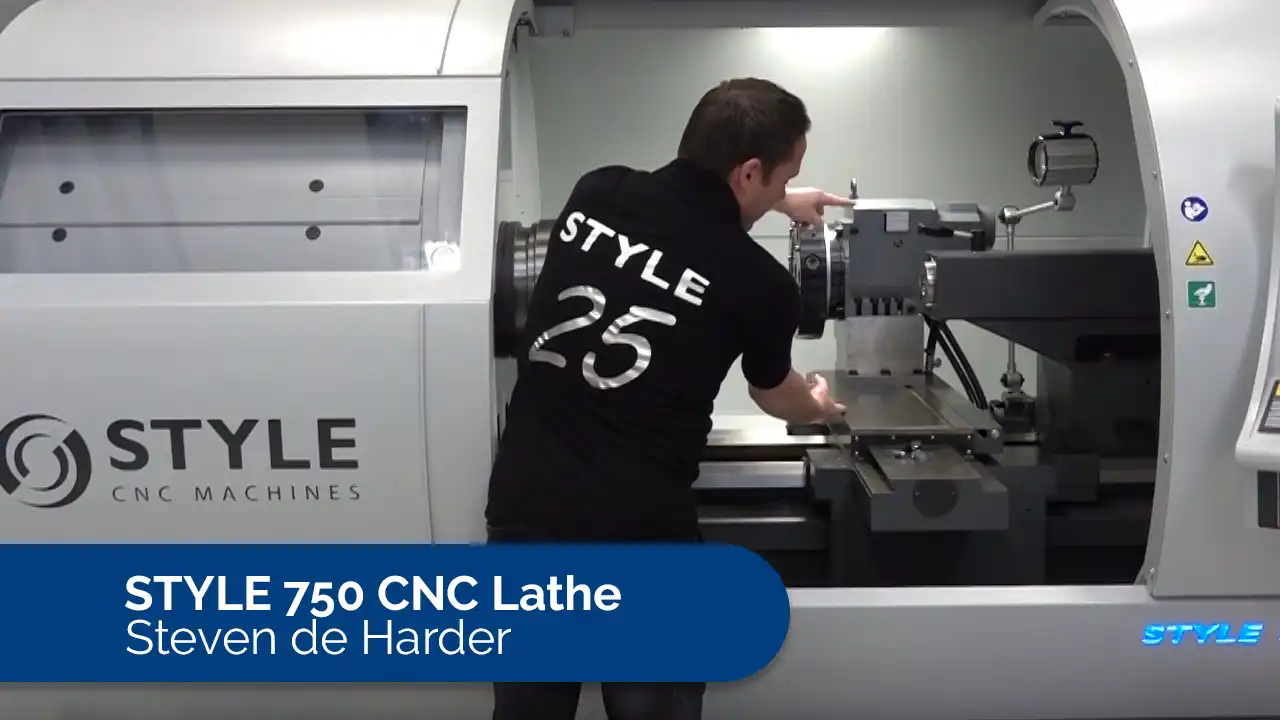

The STYLE 750 is a real powerhouse for customization in single pieces and small series. This CNC lathe is available with a weighted tailstock so that stability is always guaranteed. The sturdy construction with a cast iron frame guarantees high reliability and optimal results. The STYLE 750 lathe offers you all desired flexibility for turning the most diverse products.
We are happy to support you!
Our R&D department develops every lathe to perfection. STYLE has been one of the most innovative Dutch manufacturers of CNC lathes and milling machines for 25 years. The unique STYLE Control is perfect for quick and easy production, you can get started with the STYLE 750 lathe within a day of training. The accessible CNC control is suitable for the novice operator and there are extensive functionalities for the experienced operator.
Programming from the office
You can place all your programs that you want to run on a USB stick, but it is also possible to place the computer of the lathe in your IT network. This allows you to program your programs outside the machine.
|Swing over bed||mm||750|
|Swing over support||mm||530|
|Distance between centers||mm||900 / 1900 / 2900 / 3900|
|Maximum weight between centers||kg||1500 / 2000|
|Main motor power (S6)||kW||23 / 27.5 / 35|
|Spindle bore||ø mm||105 / 155 / 188 / 230|
|Max main spindle torque (S6)||Nm||4090 / 4870 / 9290 (155)|
|with gearbox||5875 / 11217 (180/230)|
|Max spindle speed||rpm||2000 (105) / 1500 (155)
1250 (180) / 1000 (230)
|Spindle taper||D1-11 / A2-11 / A2-15|
|X- and Z-axis||STYLE||750|
|Ball screw spindle ø X-axis||mm||32|
|Ball screw spindle ø Z-axis||mm||50 / 63|
|Feed rate||mm/min||0.01 – 2000|
|Quill||ø mm||105 / 125|
|Quill taper||MT||5 / 6|
|Weight||kg||4700 / 5700 / 6800 / 7900|
|Machine dimensions (l/w/h)||m||3.1 x 2.3 x 2.2 (900)
4.1 x 2.3 x 2.2 (1900)
5.1 x 2.3 x 2.2 (2900)
6.1 x 2.3 x 2.2 (3900)
|Automatic gear change||default|
|Automatic chip conveyor||default|
|Automatic tool changer||optional|
|Automatic tool changer with driven tools||optional|
|Steady rest (3 points)||ø mm||50 – 300 / 60 – 400|
|Steady rest (2 points)||ø mm||380 – 500|
