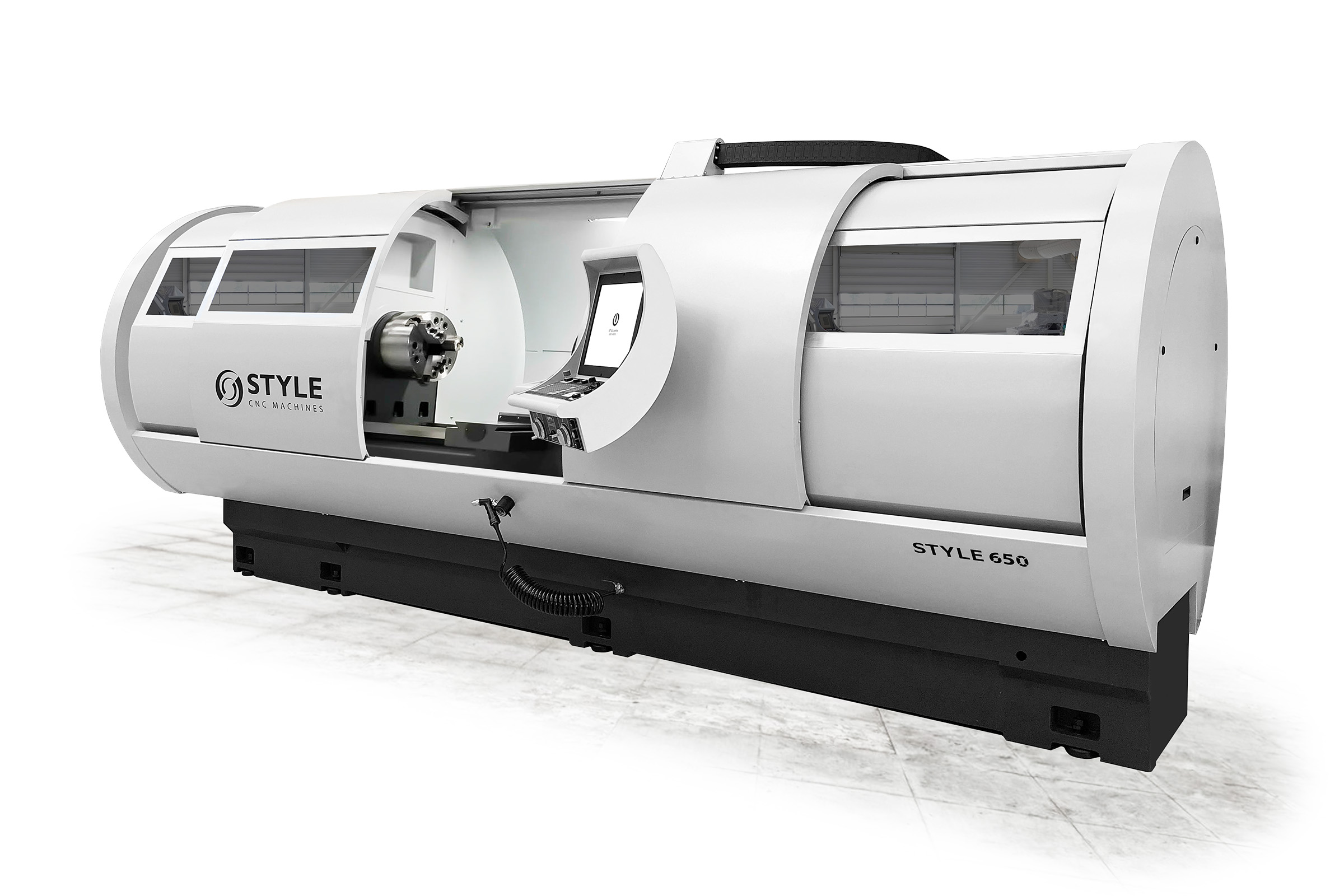

STYLE 650 CNC lathe
The STYLE 650 lathe guarantees quality, precision and efficiency for single pieces and small series. Wherever competitive performances have to be delivered with the production of single pieces and small series, STYLE CNC Machines offers unique advantages. Each CNC lathe from STYLE is unparalleled in its class and offers optimum flexibility for turning the most diverse products.
Any questions or would you like more information about this CNC lathe?
We are happy to support you!
Erwin Koelewijn
Michel Haaima
Jeroen ter Haar
STYLE 650 CNC lathe, the best lathe for flexible customization
STYLE 650 CNC lathe in brief:
- Extremely stable cast iron machine frame
- Diameter 105 mm
- High torque (gearbox in combination with heavy main engine) up to 7900 Nm
- Distance between the centers of 900/1900/2900/3900 mm
- Choice of engine power 23 / 27.5 / 35 kW
Only the best is in the STYLE control

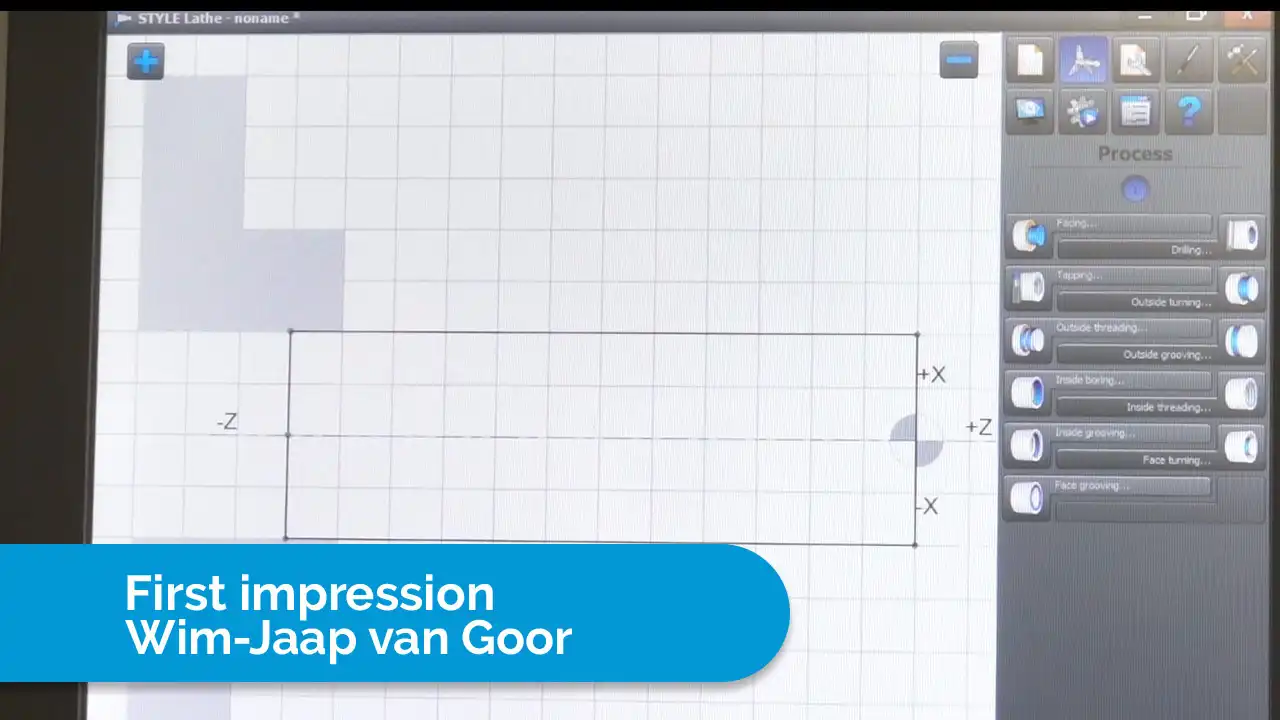

Each CNC lathe from STYLE CNC Machines is equipped with the intuitive control system developed by ourselves and is notable for its unique design. The STYLE Control offers the convenience and accessibility to be able to work with the machines with just a few hours of training, as well as extensive functionalities for the experienced machine operator. The STYLE 650 is a complete CNC machine suitable for customization thanks to the ergonomic design combined with the control.
Programming from the office
You can place all your programs that you want to run on a USB stick, but it is also possible to place the computer of the lathe in your network. This allows you to program your programs outside the machine.
| Machine | STYLE | 650 |
| Swing over bed | mm | 650 |
| Swing over support | mm | 430 |
| Distance between centers | mm | 900 / 1900 / 2900 / 3900 |

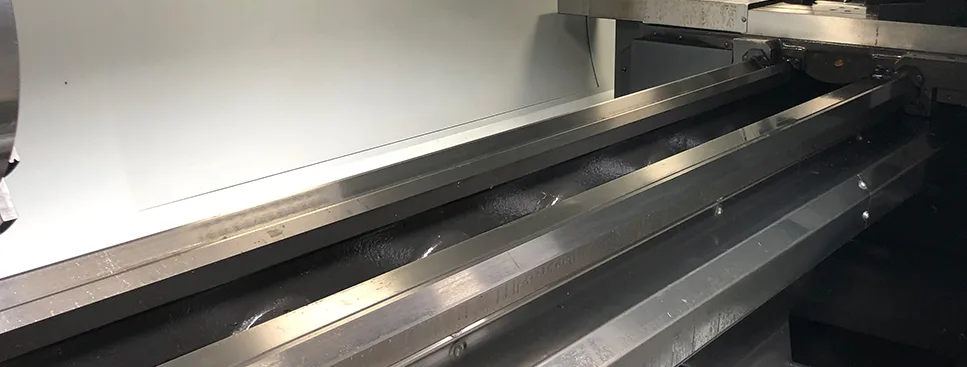

| Bed width | mm | 450 |
| Maximum weight between centers | kg | 1500 |

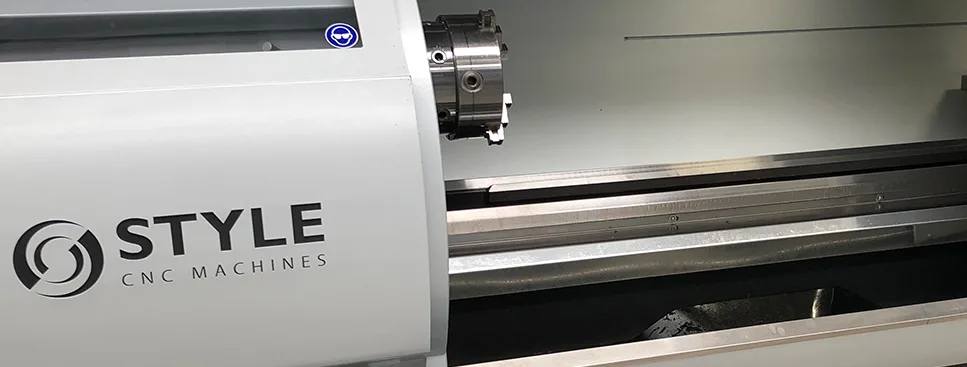

| Main spindle | STYLE | 650 |
| Main motor power (S6) | kW | 23 / 27.5 / 35 |
| Spindle bore | ø mm | 105 |
| Max main spindle torque (S6) | Nm | 3450 / 4140 / 7900 (105) |
| with gearbox | ||
| Max spindle speed | rpm | 2000 (105) |
| Spindle taper | D1-11 |

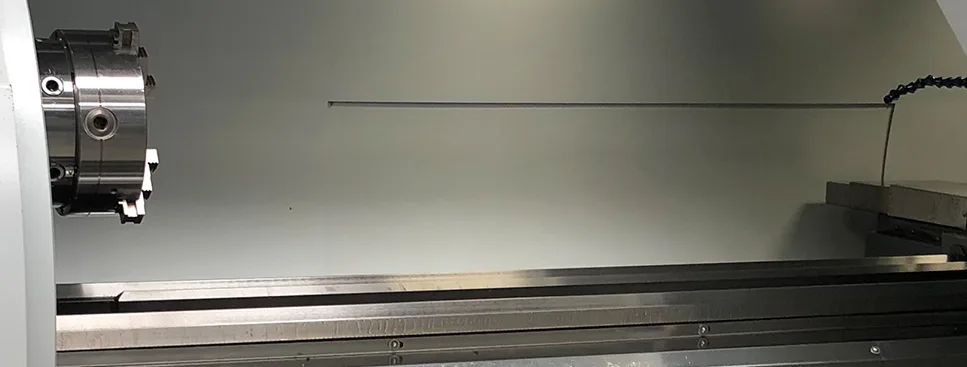

| X- and Z-axis | STYLE | 650 |
| Ball screw spindle ø X-axis | mm | 32 |
| Ball screw spindle ø Z-axis | mm | 50 |
| Rapid movement | m/min | 8 |
| Feed rate | mm/min | 0.01 – 2000 |
| Tail stock | STYLE | 650 |
| Quill | ø mm | 105 |
| Quill stroke | mm | 225 |
| Quill taper | MT | 5 |

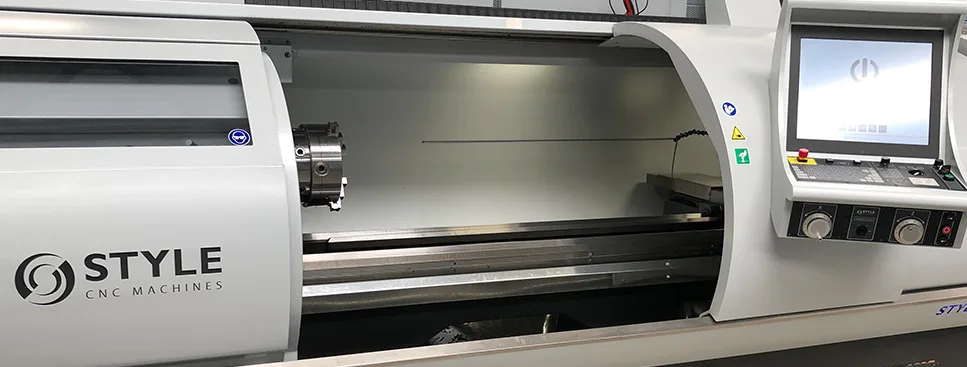

| General | STYLE | 650 |
| Weight | kg | 4700 / 5700 / 6800 / 7900 |
| Machine dimensions (l/w/h) | m | 3.1 x 2.3 x 2.2 (900) 4.1 x 2.3 x 2.2 (1900) 5.1 x 2.3 x 2.2 (2900) 6.1 x 2.3 x 2.2 (3900) |
| Options | STYLE | 650 |
| Automatic gear change | default | |
| Automatic chip conveyor | default | |
| Automatic tool changer | optional | |
| Spindle indexing | optional | |
| Automatic tool changer with driven tools | optional | |

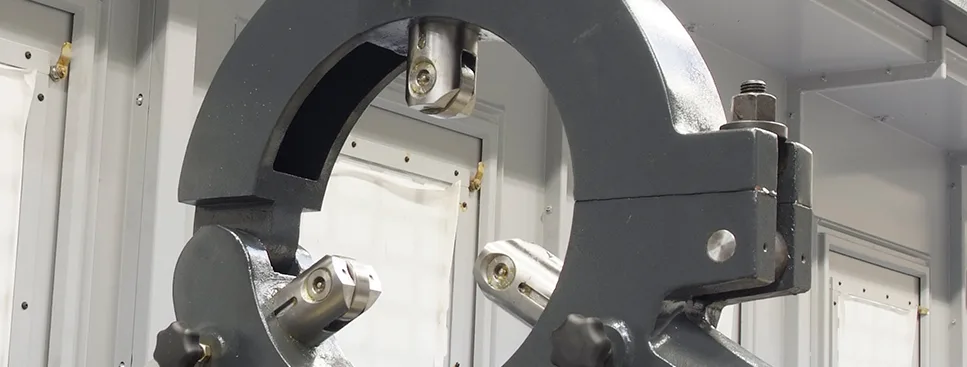

| Steady rest (3 points) | ø mm | 50 – 300 / 60 – 400 |
| Steady rest (2 points) | ø mm | – |
