The STYLE 510 CNC lathe is extremely suitable for the production of custom work, small series and revision work. For the turning specialist who wants to work quickly, makes high-quality products and wants to switch quickly between products. The STYLE lathes are CNC controlled machines with a very accessible operation and always a good view of the drawing and product. The manual control for the experienced turner also works quickly and directly.
We are happy to support you!
Erwin Koelewijn
Michel Haaima
Jeroen ter Haar
The STYLE 510 Lathe is, just like the other machines in the series, completely closed so that the chips and coolant remain within your machine. The doors of the machine can be opened completely so that access to the machine is completely open. The name of the “510” lathe has to do with the turning diameter across the bed, which is 510 mm. The turning diameter over the support is 300 mm. The distance between the centers is 1350 mm as standard and can also be supplied with a distance of 1850 mm.
Programming from the office
You can place all your programs that you want to run on a USB stick, but it is also possible to place the computer of the lathe in your network. This allows you to program your programs outside the machine.
Machine | STYLE 510 | |
---|---|---|
Swing over bed | mm | 510 |
Swing over support | mm | 300 |
Distance between centers | mm | 1350 / 18501 |

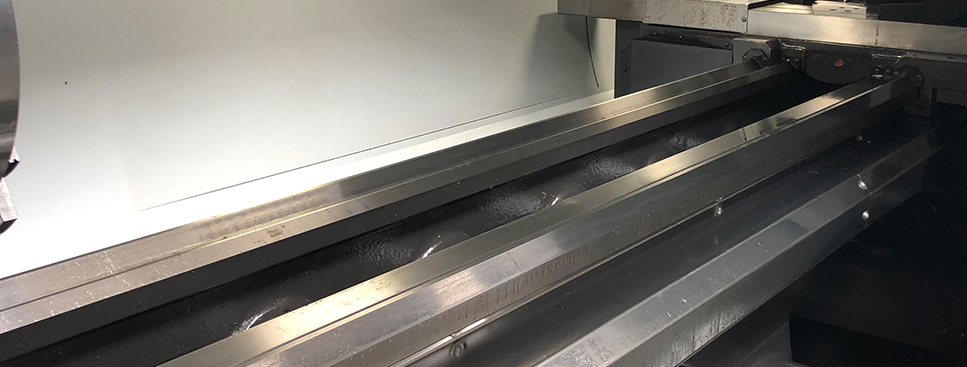

Bed width | mm | 330 |
Maximum weight between centers | kg | 600 / 7502 |
1 With a heavy tail stock dbc becomes 1200/1700, 2 Possible with heavy duty tail stock

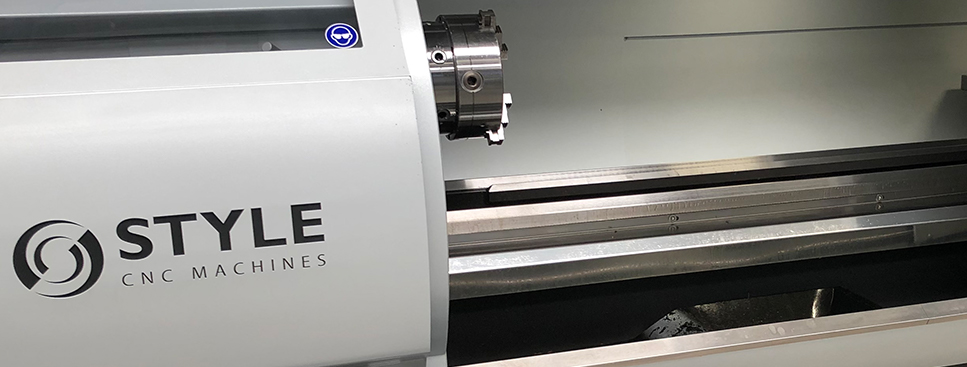

Main spindle | STYLE 510 | |
---|---|---|
Main motor power (S6) | kW | 7.5 / 11 / 15 |
Spindle bore | ø mm | 80 / 102 |
Maximum spindle speed | rpm | 2500 (80) / 2100 102 |
Spindle taper | D1-8 |

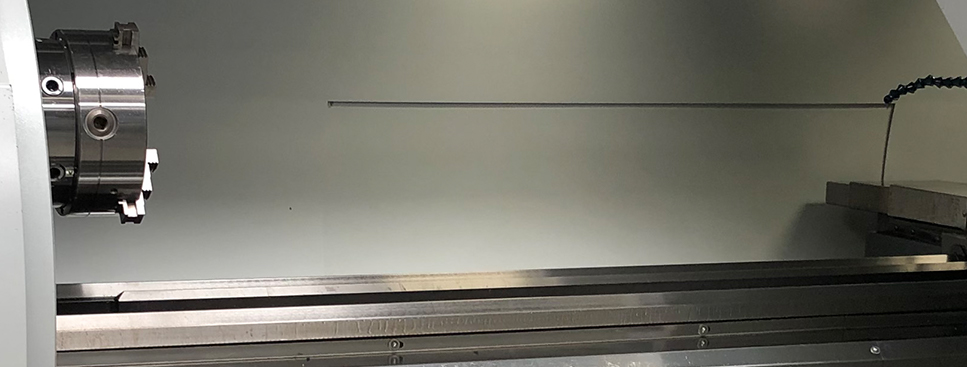

X- and Z- axis | STYLE 510 | |
---|---|---|
Rapid movement | m/min | 8 |
Feed rate | m/min | 2 |
Tail stock | STYLE 510 | |
---|---|---|
Quill | ø mm | 75 / 802 |
Quill stroke | mm | 160 |
Quill taper | MT | 5 |
2 Possible with heavy duty tail stock

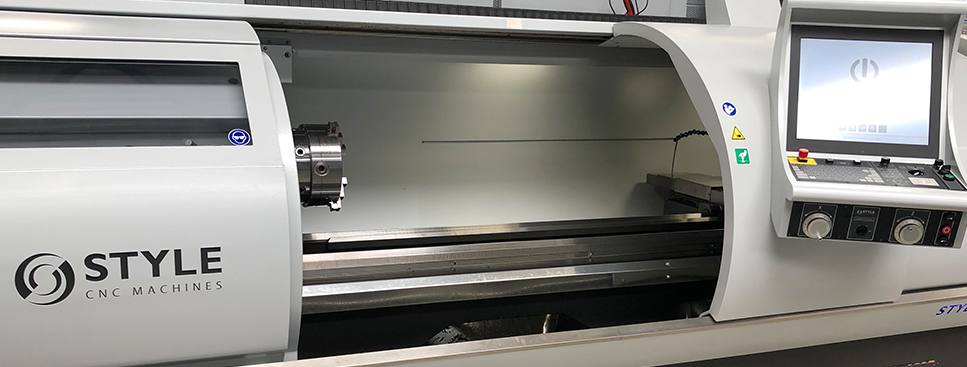

General | STYLE 510 | |
---|---|---|
Weight | kg | 2700 / 3250 |
Machine dimensions (l/w/h) | m | 3.2 x 1.8 x 1.8 (1350) |
3.7 x 1.8 x 1.8 (1850) |

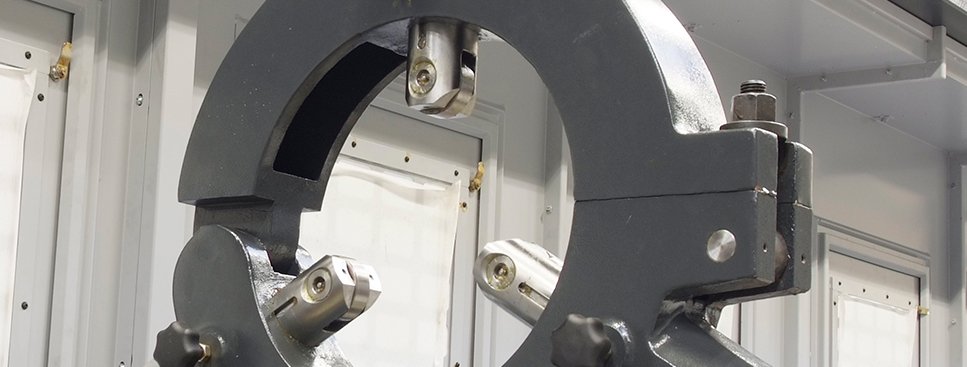

Options | STYLE 510 |
---|---|
Automatic chip conveyor | option |
Automatic tool changer | option |
Positioned C-axis | – |
Automatic tool changer with driven tools | – |
