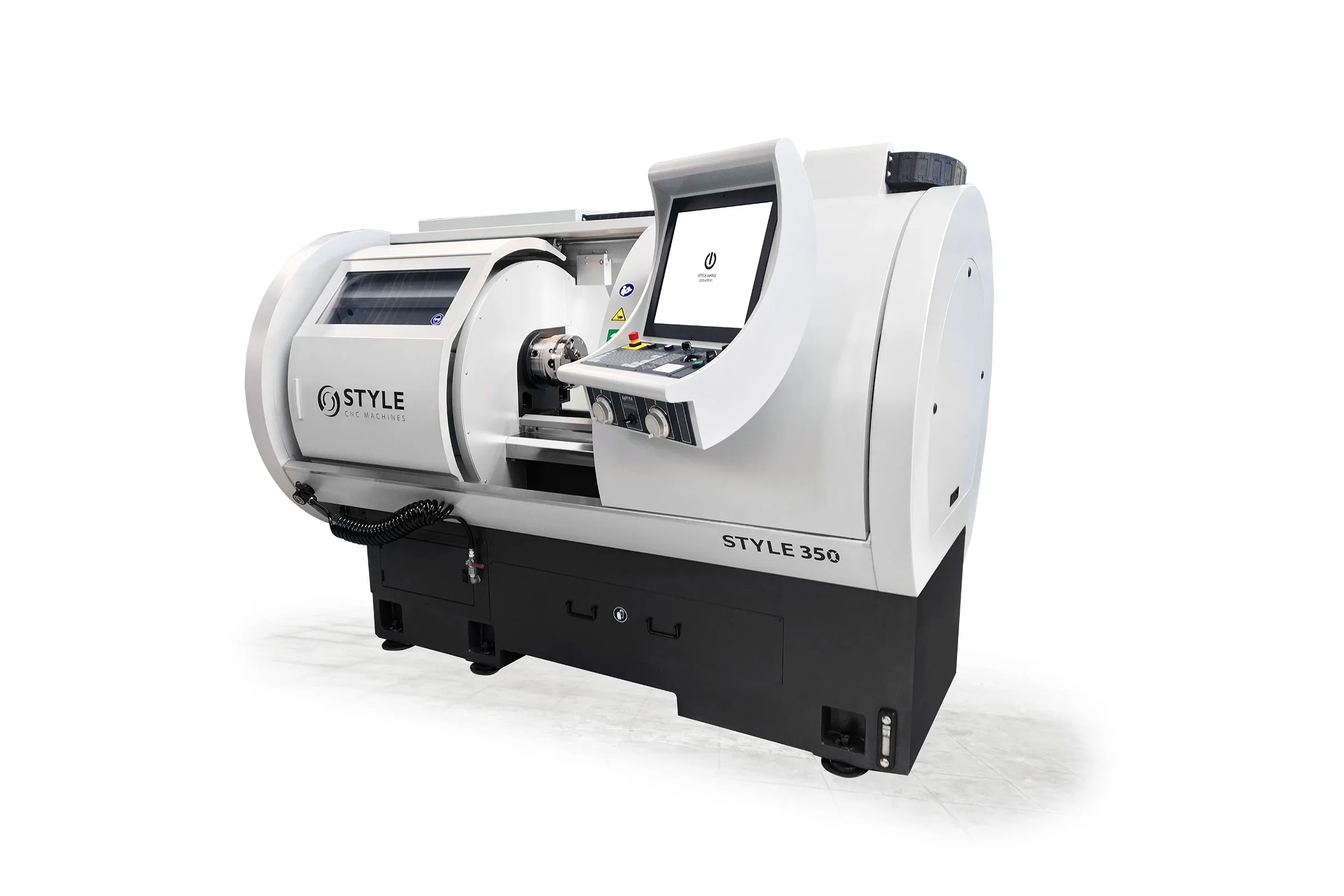

STYLE 350 CNC lathe

The STYLE 350 lathe is ideal for machining single pieces and small series. A heavy cast iron frame gives the machine a very solid base. The ergonomic design combines optimal accessibility and ease of use with sufficient safety. This machine offers you all the flexibility you want for turning the most diverse products.

Any questions or would you like more information about this CNC lathe?

We are happy to support you!

STYLE 350 CNC lathe, for small jobs with great performance

STYLE 350 CNC lathe in brief:

  • Extremely stable cast iron machine frame
  • Quill 54 mm
  • High torque (gearbox in combination with heavy main engine)
  • Distance between the centers 850 mm
  • Weight 2000 kg

Very accurate machining with the STYLE 350 CNC lathe

One of the smaller lathes from the STYLE lathes series is also equipped with the unique STYLE control. The lathe is equipped with the latest STYLE control, which speeds up the machining process of your products considerably and also makes high-quality products. Naturally you will bring a very stable CNC lathe to your machine park with this machine. Due to the flatness of the bed width (305 mm) and the center, you can assume that this machine is very stable, so that your products can be accurately produced.

Programming from the office
You can place all your programs that you want to run on a USB stick, but it is also possible to place the computer of the lathe in your network. This allows you to program your programs outside the machine.

Bed STYLE draaibank
Machine STYLE 350
Swing over bed mm 380
Swing over support mm 190
Distance between centers mm 850
Bed width mm 305
Maximum weight between centers kg 300
Machinedeur STYLE draaibank
Main spindle STYLE 350
Main motor power (S6) kW 5.5 / 7.5
Spindle bore ø mm 54
Max main spindle torque (S6) Nm 373 / 509
with gearbox
Max spindle speed rpm 3000 / 4000
Spindle taper D1-6
Machinedeur STYLE draaibank
Product detail STYLE draaibank
X- and Z-axis STYLE 350
Ball screw spindle ø X-axis mm 25
Ball screw spindle ø Z-axis mm 40
Rapid movement m/min 8
Feed rate mm/min 0.01 – 2000
Detail foto losse kop
Tail stock STYLE 350
Quill ø mm 54
Quill stroke mm 100
Quill taper MT 4
Detail foto losse kop
Detail STYLE 510 draaibank
General STYLE 350
Weight kg 2000
Machine dimensions (l/w/h) m 2.5 x 1.8 x 1.8
Product detail bril
Options STYLE 350
Automatic gear change
Automatic chip conveyor optional
Automatic tool changer optional
Spindle indexing
Automatic tool changer with driven tools
Steady rest (3 points) ø mm 10 – 300
Steady rest (2 points) ø mm
Product detail bril
