STYLE 1200 – 1500 CNC lathe
The STYLE CNC lathes from 1200 to 1500 combine precision and reliability with ease of use, enabling large workpieces to be machined efficiently. Ideal for producing high-quality single pieces and small series without the need for complex CNC programming.
| Swing over bed | 1200 – 1500 mm |
| Swing over support | 820 – 1120 mm |
| Distance between centers | 1500 – 16000 mm |
| Bed width | 692 mm |
| Main motor power (S6) | 37 / 45 / 55 kW |
| Spindle bore | 165 – 550 Ø mm |
| Control | STYLE 2024 lathe edition |
Optional full enclosed sheetmetal
STYLE 1200 – 1500 Specifications
Control
Equipped with the STYLE 2024 lathe edition
Machine
| Swing over bed | 1200 / 1300 / 1400 / 1500 mm |
| Swing over support | 820 / 920 / 1020 / 1120 mm |
| Distance between centers | 1500 / 2000 / 3000 / 4000 / 5000 / 6000 / 7000 / 8000 / 9000 / 10000 / 11000 / 12000 / 13000 / 14000 / 15000 / 16000 mm |
| Bed width | 692 mm |
| Number of guides | 3 |
Main spindle
| Main motor power (S6) | 37 / 45 / 55 kW |
| Spindle bore | 165 / 230 / 305 / 360 / 410 / 550 Ø mm |
| Max. spindle speed | 660 / 660 / 400 / 300 / 250 / 250 rpm |
| Spindle taper | A2-11 / A2-15 / A2-20 / A2-20 / A2-28 / A2-28 |
Workpiece weight (balanced relative to the spindle bore)
Spindle bore 165 Ø mm
| Chuck | 1500 kg |
| Chuck + tailstock | 5000 kg |
| Chuck + tailstock + 1 steady rest | 8000 kg |
| Chuck + tailstock + 2 steady rests | 12000 kg |
Spindle bore 230~550 Ø mm
| Chuck | 1900 kg |
| Chuck + tailstock | 5400 kg |
| Chuck + tailstock + 1 steady rest | 8400 kg |
| Chuck + tailstock + 2 steady rests | 12400 kg |
X- and Z-axis
| X-axis movement | 600 / 650 / 700 / 750 mm |
| Z-axis movement | DBC minus 650 |
| Rapid movement | 5 m/min |
| Feed rate | 5 m/min |
Tailstock
| Quill | 1402 / 2002 / 3004 Ø mm |
| Quill stroke | 330 mm |
| Quill taper | 6 MK |
2 Not possible with live Quill, 4 Always complete hydraulic tailstock (Quill + body) with live Quill (MT6) & spindle taper A2-11
General
| Weight | 10500 / 11000 / 12000 / 13000 / 1400 / 15000 / 16000 / 17000 / 18000 / 19000 / 20000 / 21000 / 22000 / 23000 / 24000 / 25000 kg |
| Length | 4930 / 5430 / 6430 / 7430 / 8430 / 9430 / 10430 / 11430 / 12430 / 13430 / 14430 / 15430 / 16430 / 17430 / 18430 / 19430 mm |
| Width | 2960 mm |
| Height | 2550 mm |
Do you have any further questions about our CNC machines?
Our representatives are at your service
STYLE 1200 – 1500 CNC control
Designed for single pieces and small series
For many companies, machining single pieces or small series is a challenge: complex CNC programmes, long set-up times and error-prone processes slow down production. Standard controls are often geared towards mass production and are poorly suited to customisation and rapid changes between products.
The STYLE CNC control system has therefore been developed and produced entirely in the Netherlands. For more than 35 years, we have been perfecting a control system that makes both turning and milling simple, reliable and efficient. You can switch between products more quickly, minimise errors and work without complicated G-codes. This allows you to maintain complete control over the end result while increasing production speed. Both novice and experienced CNC operators benefit from a smooth and intuitive production process.
- Programming times are significantly reduced
- Fewer errors thanks to intuitive operation
- Complex CNC codes are unnecessary
- Flexibility for customisation and small series
- Higher production capacity without additional stress

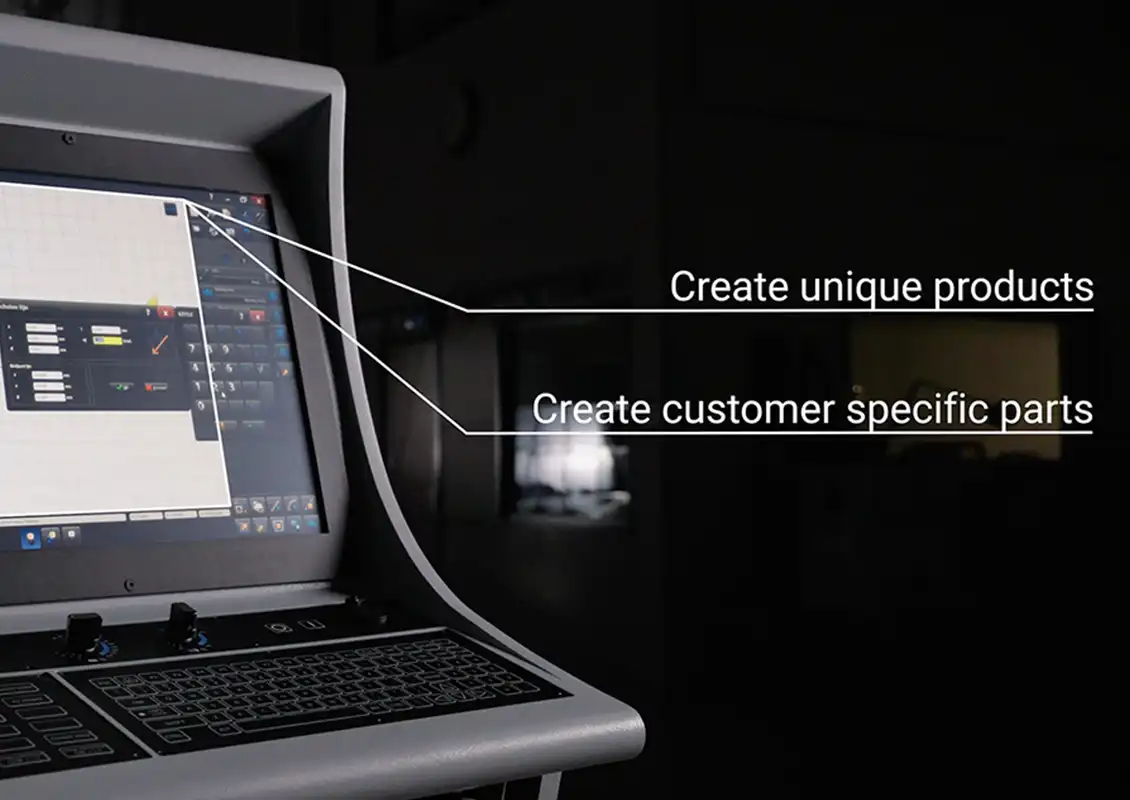

With the STYLE control system, you can easily create unique and fully customised parts. No complex operations or external programmers required. Just do it yourself, directly on the machine.
STYLE 1200 – 1500 Built in the Netherlands

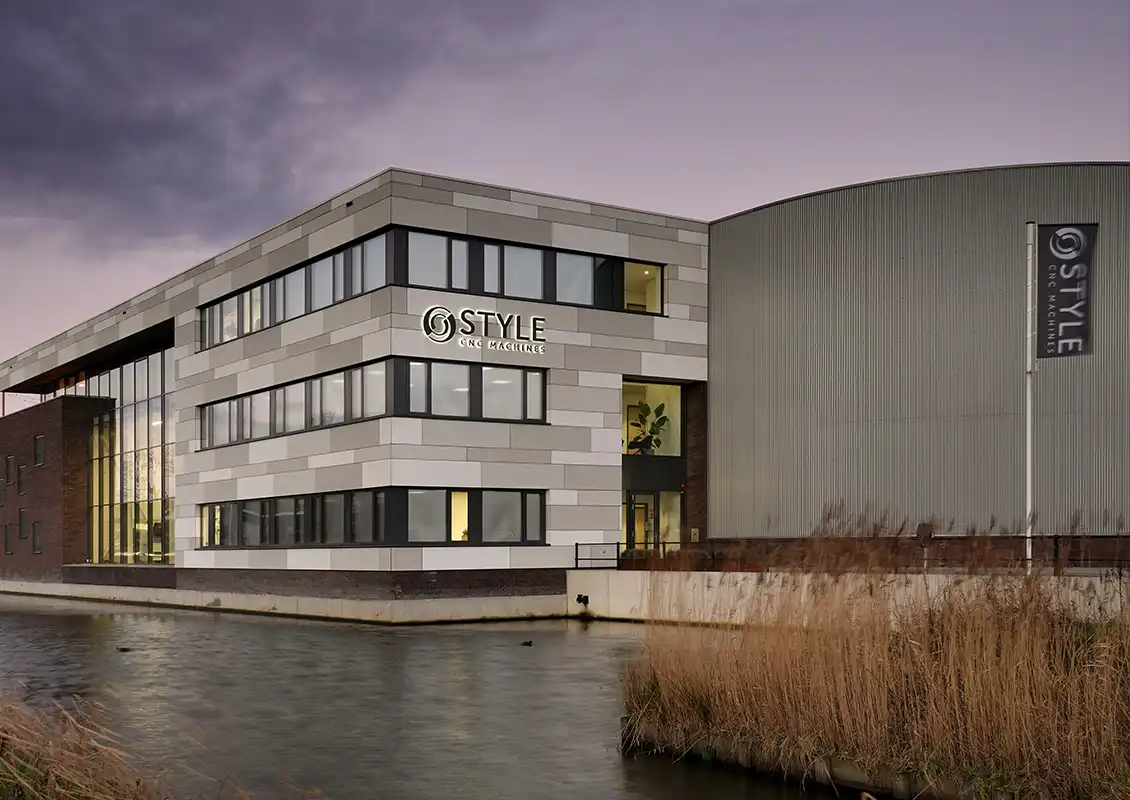

Developed and built in the Netherlands
Every STYLE CNC machine is fully developed, assembled and tested in the Netherlands. Our R&D team is constantly working on improvements to guarantee maximum performance and reliability. The sturdy machine frames come from our regular partner in Taiwan, where our own specialists closely monitor quality. In the Netherlands, these frames are equipped with Fanuc drives, high-quality sheet metal and the STYLE CNC control system. In this way, we combine international quality with Dutch craftsmanship and precision.
Our head office is located in the Netherlands.
